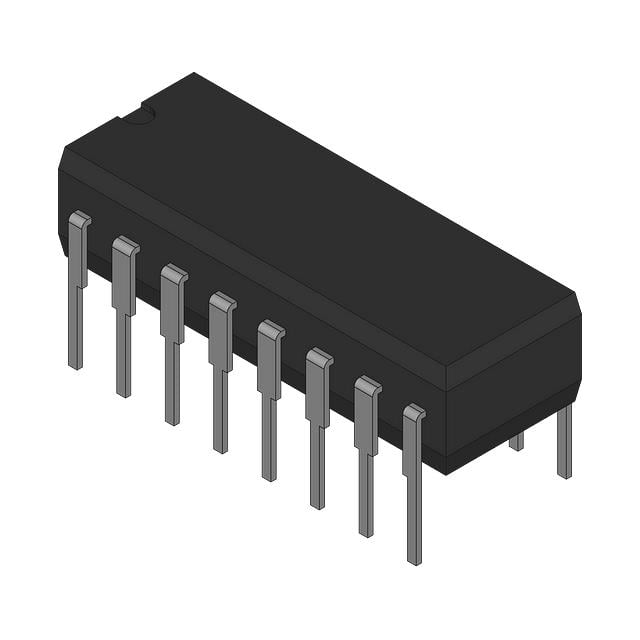

SN74LS594D TI Shift Register | 8-Bit, Serial-In, Parallel-Out

Product Overview

The SN74LS594D is a monolithic 8-bit shift register with output latches manufactured by Texas Instruments. It features serial input, parallel output, and a storage register that allows data to be transferred from the shift register to the output latches independently. The device operates from a 4.75V to 5.25V supply and is characterized for operation from 0°C to 70°C. It is available in a 16-pin SOIC package.

Detailed Technical Specifications

Key Features

• 8-bit serial-in, parallel-out shift register with storage register
• Independent shift and storage clock inputs
• Direct clear for shift register
• Outputs can be forced to high-impedance state via output enable
• Typical clock frequency up to 35 MHz
• Low power consumption: 80 mW typical
• Wide operating voltage range: 4.75V to 5.25V
• Industry-standard 16-pin SOIC package

Target Applications

• 5G base station control logic for antenna beamforming
• Automotive dashboard display drivers
• Industrial automation PLC output expansion
• LED matrix display controllers
• Data acquisition systems for serial-to-parallel conversion

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LS594D. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
