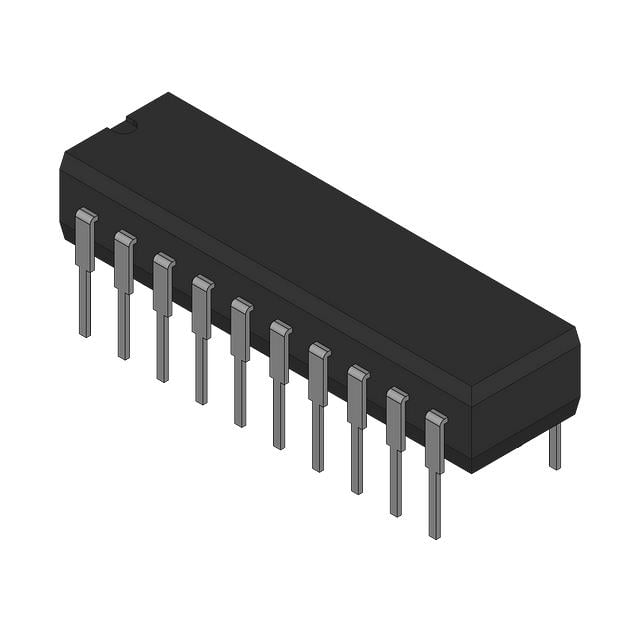

SN74LS644-1N TI Bus Transceiver | 20-PDIP | 8-Bit, Inverting, 3-State

Product Overview

The SN74LS644-1N is a high-performance 8-bit bus transceiver from Texas Instruments, designed for bidirectional asynchronous communication between data buses. It features inverting outputs and 3-state outputs for bus-oriented applications. Housed in a 20-pin PDIP package, this device operates from a standard 5V supply and is characterized for operation from 0°C to 70°C.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional bus transceiver with inverting outputs
• 3-state outputs for bus isolation
• Low power consumption: 45mW typical
• High noise immunity: typical 0.4V at VCC = 5V
• Inputs and outputs are compatible with TTL logic levels
• Output sink capability: 8mA
• Output source capability: -400µA
• Standard 20-pin PDIP package for easy prototyping

Target Applications

• Data communication in 5G base station control boards
• Bus interface in automotive dashboard display systems
• Memory address/data bus buffering in industrial PLCs
• Signal routing in telecom switching equipment
• General-purpose bidirectional data transfer in embedded systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LS644-1N. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
