SN74LV04DR TI Inverter | 6-Channel, 2V to 5.5V, -12mA Output

Product Overview

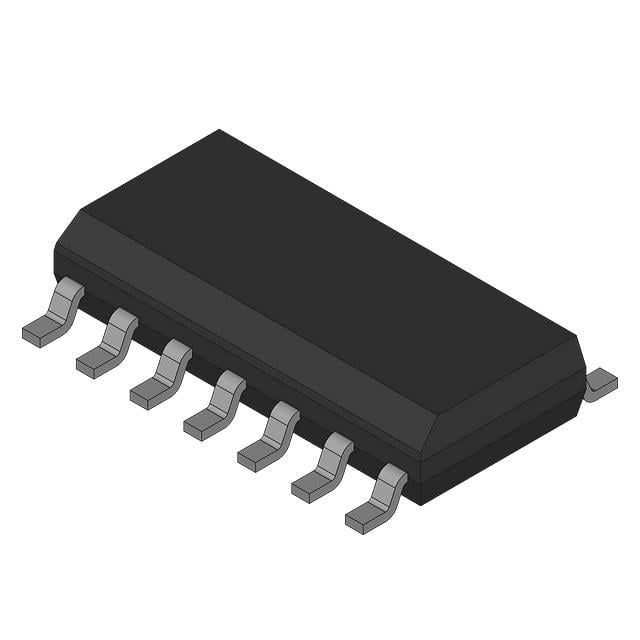

The SN74LV04DR from Texas Instruments is a hex inverter IC containing six independent inverter gates. Designed for low-voltage operation, it is part of the LV family and offers high-speed performance with low power consumption. The device operates over a wide voltage range from 2V to 5.5V, making it suitable for battery-powered and portable applications. It features balanced propagation delays and high noise immunity, ensuring reliable operation in noisy environments. The SN74LV04DR is available in a small SOIC-14 package, ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 2V to 5.5V
• High noise immunity: VNIH = 0.7 × VCC, VNIL = 0.3 × VCC
• Low power consumption: 10 µA max ICC
• High drive capability: ±12 mA at 3.3V
• Balanced propagation delays: tPLH ≈ tPHL
• ESD protection: 2 kV HBM
• Available in SOIC-14 package

Target Applications

• 5G base station control logic
• Automotive dashboard display drivers
• Portable medical devices (e.g., glucose meters)
• Industrial sensor interfaces
• Consumer electronics (e.g., smart home hubs)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LV04DR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
