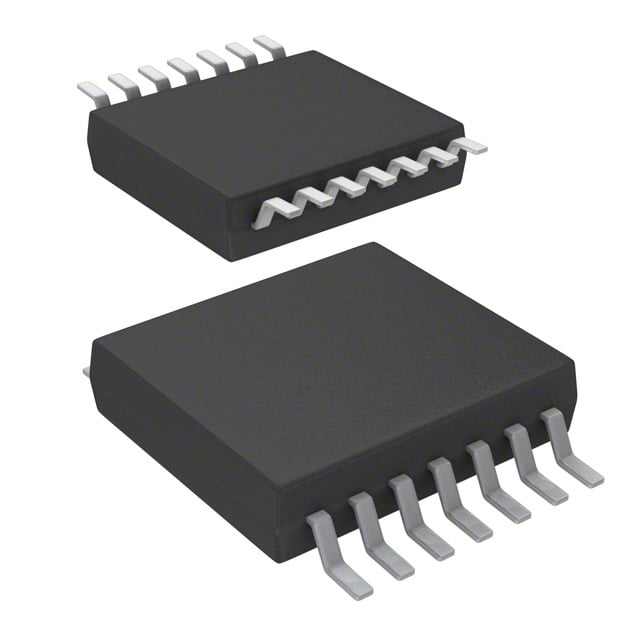

SN74LV10ADGVR TI Logic Gates | 14-TVSOP | Triple 3-Input NAND, 2V-5.5V

Product Overview

The SN74LV10ADGVR from Texas Instruments is a triple 3-input positive-NAND gate designed for 2-V to 5.5-V VCC operation. This device performs the Boolean function Y = A·B·C in positive logic. It is fabricated using advanced LinBiCMOS™ technology to achieve high speed and low power consumption. The 14-TVSOP package offers a compact footprint suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• Triple 3-input NAND gate with Schmitt-trigger inputs for noise immunity
• Wide operating voltage range: 2 V to 5.5 V
• High drive capability: ±12 mA at 4.5 V
• Low power consumption: ICC = 20 μA (max) at 5.5 V
• ESD protection exceeds JESD 22: 2000-V Human-Body Model (A114-A)
• Latch-up performance exceeds 250 mA per JESD 78, Class II
• Available in small 14-TVSOP package for space-saving designs

Target Applications

• 5G base station control logic: Used in signal conditioning and data routing modules
• Automotive dashboard displays: Logic gating for indicator control and sensor interfaces
• Industrial automation: PLC I/O modules and sensor signal processing
• Consumer electronics: Smart home hubs and IoT devices
• Medical devices: Portable diagnostic equipment logic circuits

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LV10ADGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
