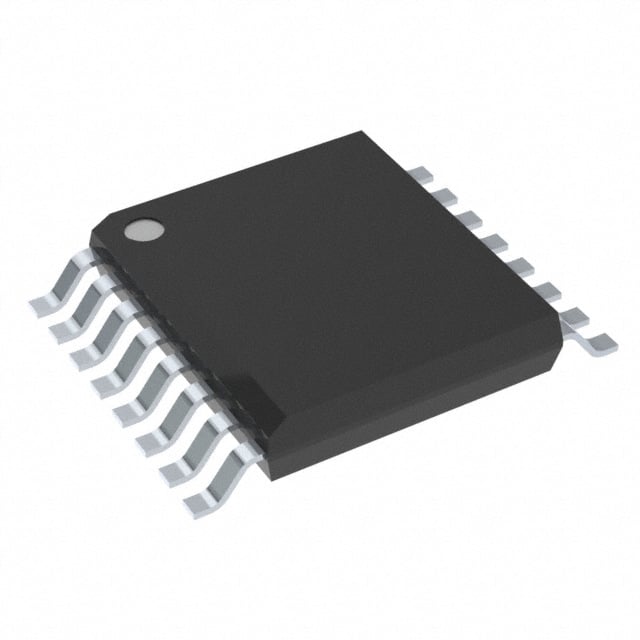

SN74LV165ADBR TI Shift Register | 16-SSOP | 8-bit, Parallel-to-Serial
Default Title：$0.00
🧪 SAMPLE SUPPORT
✅ 100% Original & Traceable
🚀 Inquiry Today, Ship Today
🛡️ Escrow.com Secured Payment
Product Overview
The SN74LV165ADBR is a high-performance 8-bit parallel-to-serial shift register from Texas Instruments (TI), designed for low-voltage applications. It operates with a supply voltage range of 2V to 5.5V, making it suitable for battery-powered and portable devices. The device features parallel load capability, allowing data to be loaded from eight input pins simultaneously, and then shifted out serially. The SN74LV165ADBR is housed in a compact 16-pin SSOP package, ideal for space-constrained designs.
Detailed Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage (VCC) | 2V to 5.5V |
| Input Voltage (VI) | 0V to VCC |
| Output Voltage (VO) | 0V to VCC |
| High-Level Input Voltage (VIH) | 0.7 × VCC (min) |
| Low-Level Input Voltage (VIL) | 0.3 × VCC (max) |
| High-Level Output Current (IOH) | -8 mA (max) |
| Low-Level Output Current (IOL) | 8 mA (max) |
| Propagation Delay (tpd) | 10 ns (typ) at 5V |
| Operating Temperature | -40°C to +85°C |
| Package | 16-SSOP |
Key Features
- 8-bit parallel-to-serial shift register with asynchronous clear
- Wide operating voltage range: 2V to 5.5V
- Low power consumption: ICC typically 20 µA
- High-speed operation: up to 100 MHz shift frequency
- Input hysteresis for noise immunity
- Compatible with TTL and CMOS logic levels
- ESD protection exceeds 2000V (HBM)
Target Applications
The SN74LV165ADBR is ideal for applications requiring parallel-to-serial data conversion, such as:
- 5G base stations: for monitoring multiple status signals
- Automotive dashboard: reading switch inputs and sensor data
- Industrial automation: PLC input expansion
- Consumer electronics: remote control receivers, keypad scanners
- Medical devices: patient monitoring systems
