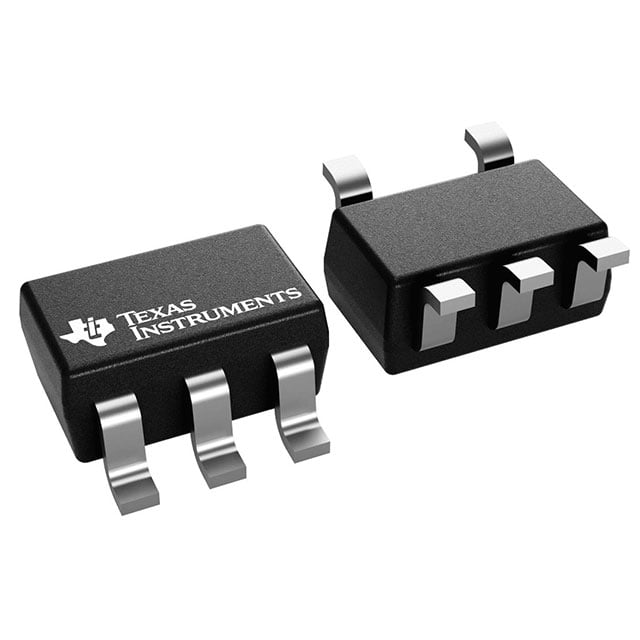

SN74LV1T00DCKR TI Single 2-Input NAND Gate | SC-70-5 | 1.65V-5.5V, 150Mbps

Product Overview

The SN74LV1T00DCKR is a single 2-input NAND gate from Texas Instruments, designed for logic-level translation and general-purpose logic applications. It operates over a wide supply voltage range of 1.65V to 5.5V, making it suitable for interfacing between different voltage domains. The device is housed in a compact SC-70-5 package, ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65V to 5.5V
• Logic-level translation capability (1.8V to 3.3V, 3.3V to 5V)
• High speed: tpd = 4.5 ns typical at 3.3V
• Low power consumption: ICC = 10 µA max
• Schmitt-trigger input for noise immunity
• Output drive: ±8 mA at 3V
• ESD protection: 2 kV HBM
• Small SC-70-5 package for space-saving

Target Applications

• 5G base station control logic
• Automotive dashboard display interface
• Industrial sensor signal conditioning
• Portable battery-powered devices
• Level translation for I2C, SPI, or GPIO

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LV1T00DCKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
