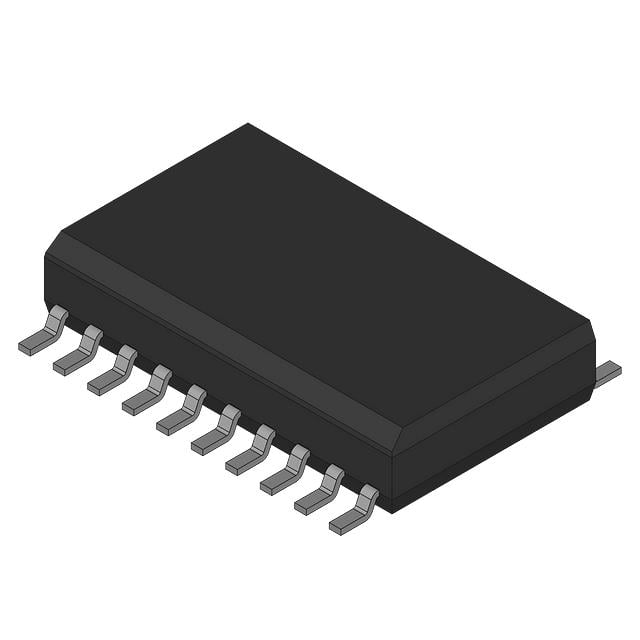

SN74LV240DWR TI Buffer/Driver | 8-ch, 3-State, 2V-5.5V, 16mA

Product Overview

The SN74LV240DWR from Texas Instruments is a high-performance octal buffer and line driver designed for 2-V to 5.5-V VCC operation. This device features 3-state outputs, making it ideal for bus-oriented applications. The inputs are tolerant to 5.5 V, allowing for mixed-voltage system compatibility. The SN74LV240DWR is part of the LV family, offering low-voltage operation with high drive capability (up to 16 mA at 5 V). It is available in a SOIC-20 package (DWR) and is characterized for operation from -40°C to +85°C.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 2 V to 5.5 V
• 5.5-V tolerant inputs
• High drive capability: ±16 mA at 5 V
• 3-state outputs for bus isolation
• Low power consumption: ICC max 20 µA
• Typical VOLP (output ground bounce) < 0.8 V at 5 V, 25°C
• Supports partial power-down mode (Ioff)
• ESD protection: 2 kV HBM, 1 kV CDM

Target Applications

The SN74LV240DWR is suitable for a wide range of applications including:

• 5G base station control boards for signal buffering and line driving
• Automotive dashboard displays and infotainment systems
• Industrial PLC (Programmable Logic Controller) I/O modules
• Data communication equipment such as routers and switches
• Medical devices like patient monitoring systems
• Consumer electronics: smart home hubs and gaming consoles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LV240DWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
