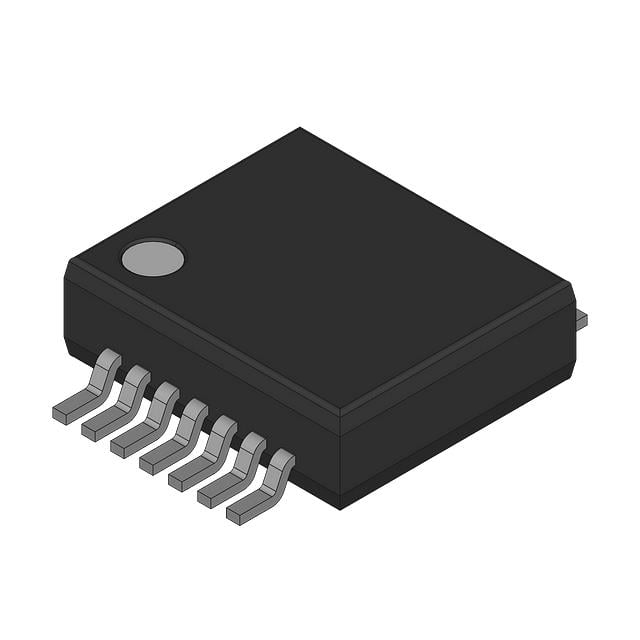

SN74LVC125ADB TI Buffer/Driver | 14-SSOP | 3.3V, 4-Channel

Product Overview

The SN74LVC125ADB from Texas Instruments is a quadruple bus buffer gate with 3-state outputs, designed for 2.7-V to 3.6-V VCC operation. It features four independent buffer gates with non-inverting outputs, each controlled by an output-enable (OE) input. When OE is low, the output is enabled; when high, the output is in a high-impedance state. This device is ideal for driving bus lines or buffering memory address registers, and is fully specified for partial-power-down applications using Ioff circuitry to prevent damaging backflow current.

Detailed Technical Specifications

Key Features

• Operates from 2.7 V to 3.6 V
• Inputs accept voltages up to 5.5 V
• Max tpd of 3.8 ns at 3.3 V
• 3-state outputs for bus-oriented applications
• Ioff supports partial-power-down mode
• Latch-up performance exceeds 250 mA per JESD 17
• ESD protection exceeds JESD 22

Target Applications

• 5G base station control logic
• Automotive dashboard display buffering
• Industrial PLC I/O modules
• Server memory address buffering
• Portable electronics level translation
