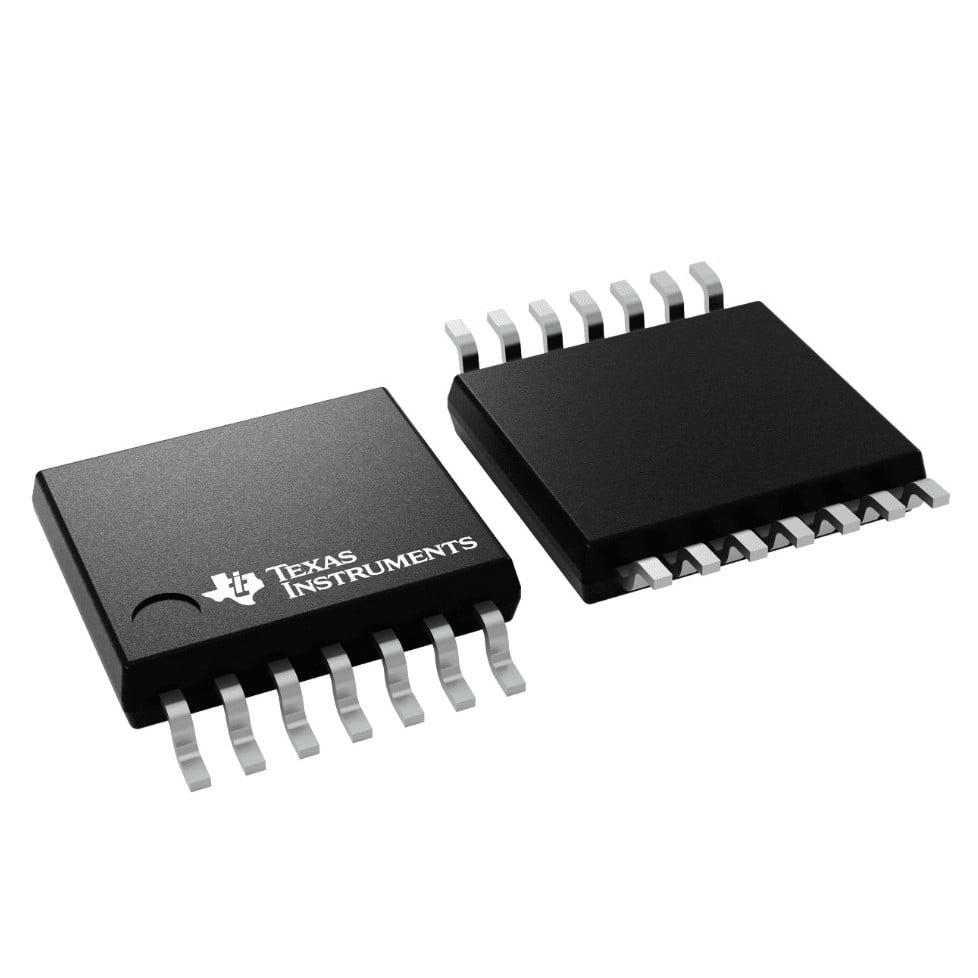

SN74LVC125APWT TI Buffer/Driver | 14-TSSOP | 3.3V, 4-Channel, Non-Inverting

Product Overview

The SN74LVC125APWT from Texas Instruments is a quadruple bus buffer gate with 3-state outputs, designed for 1.65-V to 3.6-V VCC operation. This device features four independent buffer gates with non-inverting outputs, each controlled by an output enable (OE) input. When OE is low, the output is enabled; when OE is high, the output is in a high-impedance state. The SN74LVC125APWT is fabricated using advanced LVC technology, which provides low power consumption and high noise immunity. It is ideal for driving bus lines or buffering memory address registers in a wide range of applications.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 3.6 V
• 5.5-V tolerant inputs for mixed-voltage environments
• High drive capability: ±24 mA at 3.0 V
• Low power consumption: 10-μA maximum ICC
• 3-state outputs for bus-oriented applications
• Latch-up performance exceeds 250 mA per JESD 17
• ESD protection exceeds JESD 22: 2000-V Human-Body Model (A114-A)
• Supports partial-power-down mode (Ioff)
• Packaged in 14-TSSOP for space-saving designs

Target Applications

• 5G base station control logic and signal buffering
• Automotive dashboard display interfaces and infotainment systems
• Industrial automation PLC I/O modules
• Consumer electronics: smart home hubs, gaming consoles
• Data communication: routers, switches, and servers
• Medical devices: patient monitoring systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC125APWT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVC125APWT 是德州儀器（TI）推出的四路總線緩衝閘極，具有三態輸出，支持 1.65 V 至 3.6 V 的 VCC 工作電壓。該器件包含四個獨立的緩衝閘極，每個閘極由輸出使能（OE）輸入控制。當 OE 為低電平時，輸出使能；當 OE 為高電平時，輸出處於高阻抗狀態。SN74LVC125APWT 採用先進的 LVC 技術製造，具有低功耗和高抗噪聲能力，適用於驅動總線或緩衝存儲器地址寄存器等多種應用。

詳細技術參數

核心特性

• 寬工作電壓範圍：1.65 V 至 3.6 V
• 5.5 V 容限輸入，支持混合電壓環境
• 高驅動能力：±24 mA (3.0 V 時)
• 低功耗：最大 ICC 為 10 μA
• 三態輸出，適用於總線應用
• 閂鎖性能超過 250 mA (符合 JESD 17)
• ESD 保護超過 JESD 22：2000 V 人體放電模型 (A114-A)
• 支持部分斷電模式 (Ioff)
• 採用 14-TSSOP 封裝，節省空間

典型應用場景

• 5G 基站控制邏輯與信號緩衝
• 汽車儀表板顯示接口與信息娛樂系統
• 工業自動化 PLC I/O 模塊
• 消費電子：智能家居中樞、遊戲主機
• 數據通信：路由器、交換機、服務器
• 醫療設備：病人監護系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74LVC125APWT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
