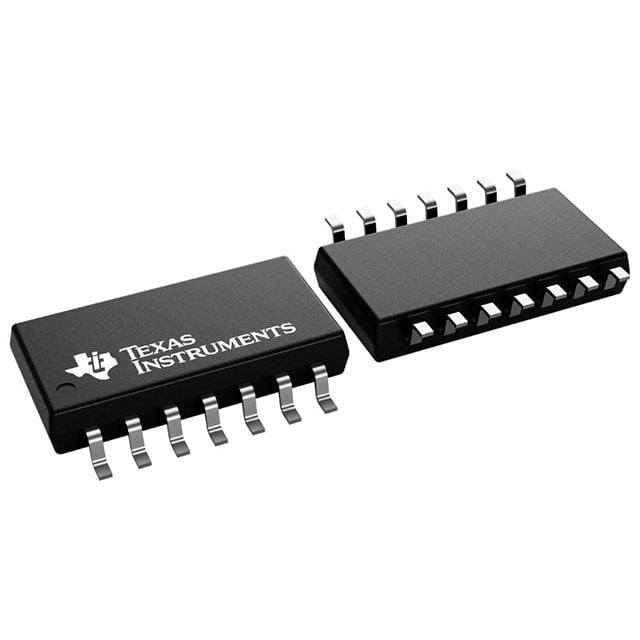

SN74LVC126ANSR TI Buffer/Driver | 14-SO | 3.3V, 4-Channel

Product Overview

The SN74LVC126ANSR is a quadruple bus buffer gate with 3-state outputs from Texas Instruments, designed for 2.7V to 3.6V VCC operation. It features four independent buffer gates with non-inverting outputs, each controlled by an output enable (OE) input. When OE is low, the output is in the high-impedance state. The device is fabricated using advanced LVC technology, providing low power consumption and high drive capability. It is available in a 14-pin SO package (NSR suffix) and is fully specified for partial-power-down applications using Ioff circuitry, which disables outputs when VCC is 0V, preventing damaging backflow current.

Detailed Technical Specifications

Key Features

• Operates from 2.7V to 3.6V
• Inputs accept voltages up to 5.5V
• Max tpd of 3.8 ns at 3.3V
• Low power consumption, 10 µA max ICC
• ±24 mA output drive at 3.3V
• Ioff supports partial-power-down mode
• 3-state outputs for bus-oriented applications
• Latch-up performance exceeds 250 mA per JESD 17
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)

Target Applications

The SN74LVC126ANSR is ideal for a wide range of applications including:

• 5G base station control logic
• Automotive dashboard display interfaces
• Industrial automation PLC I/O modules
• Consumer electronics like smart home hubs
• Data communication equipment (routers, switches)
• Medical device signal buffering

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC126ANSR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
