SN74LVC1G00DCKR TI Single 2-Input NAND Gate | SC-70-5 | 1.65V-5.5V, 5ns

Product Overview

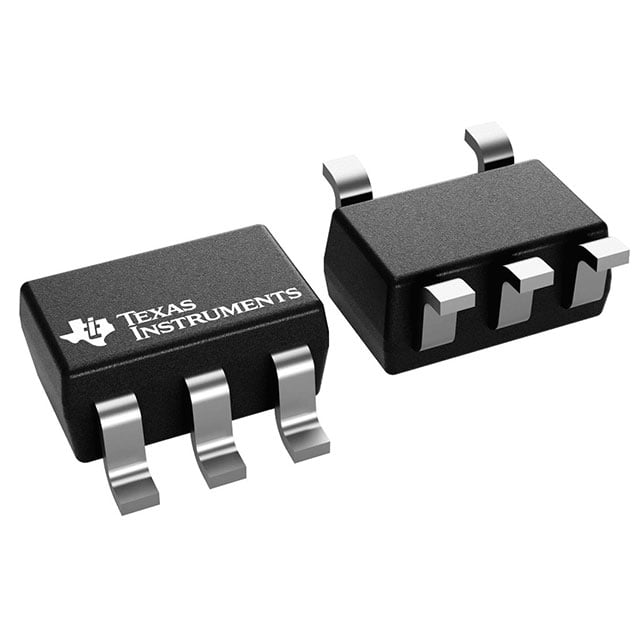

The SN74LVC1G00DCKR is a single 2-input positive-NAND gate from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device performs the Boolean function Y = A ● B or Y = A + B in positive logic. It is fabricated with advanced LVC technology to achieve high speed and low power consumption. The SN74LVC1G00DCKR is available in a small SC-70-5 package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 5.5 V
• High speed: tpd = 5 ns (typ) at 3.3 V
• Low power consumption: 10 µA max ICC
• ±24-mA output drive at 3.3 V
• Inputs accept voltages up to 5.5 V
• Latch-up performance exceeds 250 mA per JESD 17
• ESD protection exceeds JESD 22
• Available in SC-70-5 package

Target Applications

• 5G base station control logic
• Automotive dashboard display control
• Portable and battery-powered devices
• Signal gating and level translation
• Industrial sensor interfaces
• Consumer electronics like smart home hubs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1G00DCKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
