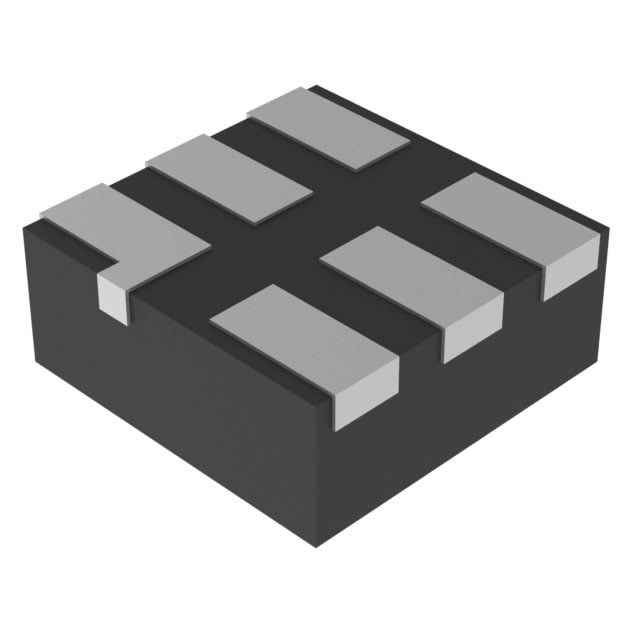

SN74LVC1G332DSF2 TI Single 3-Input OR Gate | 6-SON (1x1) | 1.65V-5.5V, 5ns

Product Overview

The SN74LVC1G332DSF2 is a single 3-input positive-OR gate from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device performs the Boolean function Y = A + B + C in positive logic. Housed in a compact 6-SON (1x1) package, it is ideal for space-constrained applications requiring low power and high speed.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 5.5 V
• High speed: tpd = 5 ns (typ) at 3.3 V
• Low power consumption: 10-µA max ICC
• ±32-mA output drive at 3.3 V
• Inputs accept voltages up to 5.5 V
• Latch-up performance exceeds 250 mA per JESD 17
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Available in ultra-small 6-SON (1x1) package

Target Applications

• 5G base station control logic
• Automotive dashboard display modules
• Portable and battery-powered electronics
• Industrial sensor interfaces
• IoT edge devices
• Signal gating in FPGA/CPLD systems
