SN74LVC1G97YEAR TI Configurable Gate | 6-DSBGA | 1.65-5.5V, 3-State

Product Overview

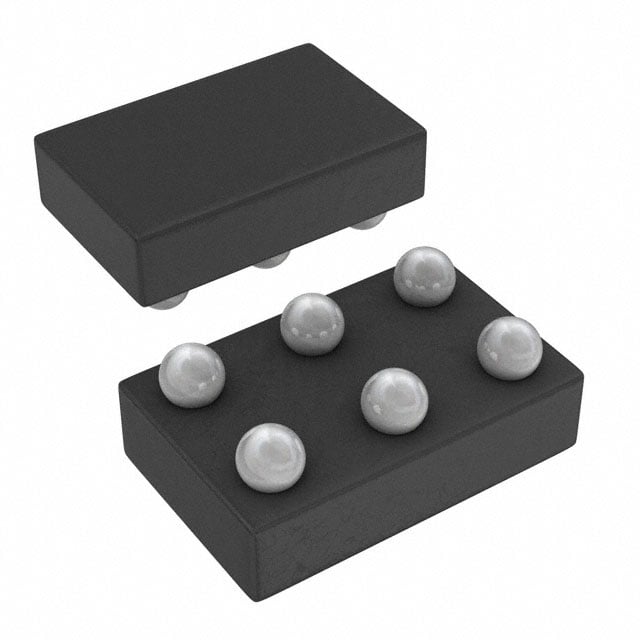

The SN74LVC1G97YEAR is a single configurable multiple-function gate from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device features a configurable logic function that can be set to any of 8 possible functions (AND, OR, NAND, NOR, XOR, XNOR, inverter, buffer) via a 3-bit input code. Housed in a compact 6-DSBGA (0.8mm x 1.2mm) package, it is ideal for space-constrained applications. The device supports partial-power-down mode (Ioff) and 3-state output, making it suitable for hot-swap and bus isolation applications.

Detailed Technical Specifications

Key Features

• Configurable logic: AND, OR, NAND, NOR, XOR, XNOR, inverter, buffer
• Wide supply voltage range: 1.65 V to 5.5 V
• 3-state output for bus isolation
• Partial-power-down mode (Ioff) prevents backflow current
• Low power consumption: 10 µA max ICC
• High drive: ±32 mA at 3.3 V
• ESD protection: 2 kV HBM, 1 kV CDM
• Ultra-small package: 6-DSBGA (0.8mm x 1.2mm)

Target Applications

• 5G base station: Logic level translation and signal routing in control boards
• Automotive dashboard: Configurable logic for display and sensor interfaces
• Portable electronics: Power management and GPIO expansion in smartphones
• Industrial automation: PLC I/O modules and sensor signal conditioning
• Medical devices: Portable diagnostic equipment requiring low power and small size
