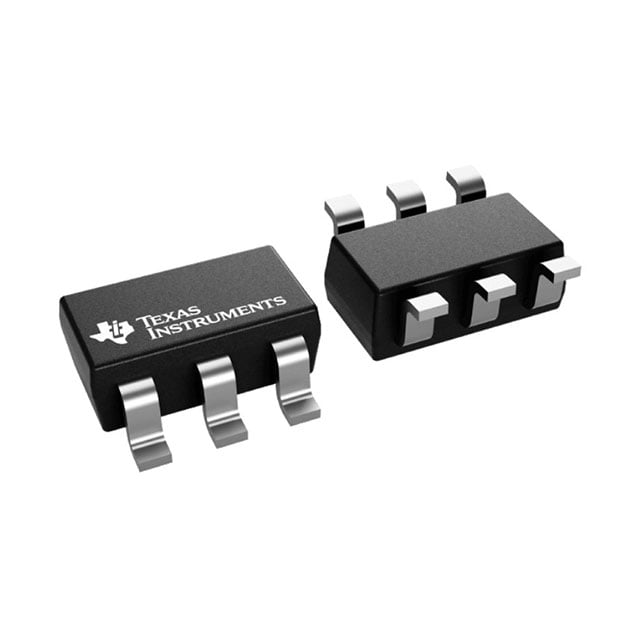

SN74LVC1T45DBVR TI Level Translator | SOT-23-6 | 1.65V-5.5V, 1-bit

Product Overview

The SN74LVC1T45DBVR is a single-bit, dual-supply non-inverting voltage level translator from Texas Instruments. It is designed for bidirectional voltage translation between different logic levels, supporting VCCA from 1.65V to 5.5V and VCCB from 1.65V to 5.5V. The device features a direction control pin (DIR) that determines the data flow direction. With a compact SOT-23-6 package, it is ideal for space-constrained applications requiring level shifting in mixed-voltage systems.

Detailed Technical Specifications

Key Features

• Bidirectional voltage level translation with direction control
• Wide supply voltage range: 1.65V to 5.5V on both ports
• High data rate up to 420 Mbps
• Low power consumption: max 10 µA quiescent current
• ESD protection: 2 kV HBM
• Small SOT-23-6 package for space-saving designs

Target Applications

• 5G base station control logic level translation (e.g., between FPGA and RF transceiver)
• Automotive dashboard display interface (e.g., between MCU and LCD driver)
• Industrial sensor modules (e.g., translating 3.3V sensor output to 5V PLC input)
• Portable electronics (e.g., battery-powered IoT devices with mixed-voltage peripherals)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC1T45DBVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
