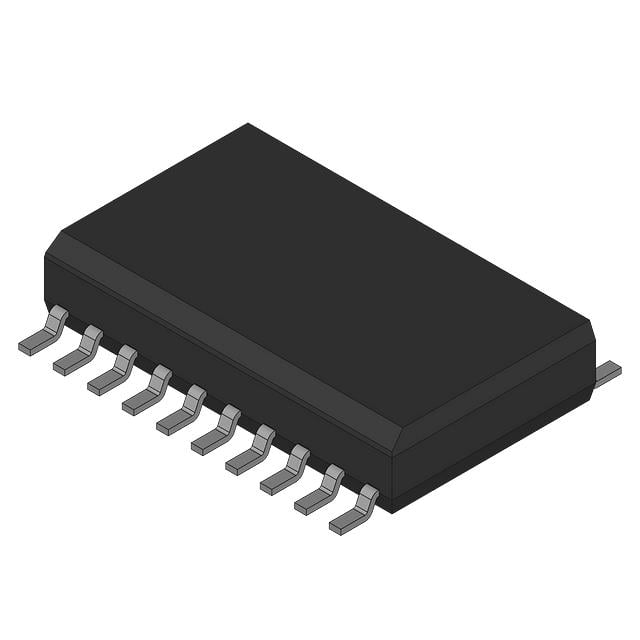

SN74LVC240DW TI Buffer/Driver | 8-Ch, 3-State, 1.65-3.6V, -24mA Drive

Product Overview

The SN74LVC240DW from Texas Instruments is a high-performance octal buffer and line driver designed for 1.65V to 3.6V VCC operation. It features 3-state outputs, making it ideal for bus-oriented applications. The device provides inverting outputs with a typical propagation delay of 3.8ns at 3.3V, ensuring high-speed signal integrity. Housed in a SOIC-20 package, it supports industrial temperature range (-40°C to +85°C) and is compatible with lower voltage nodes, enabling seamless integration into mixed-voltage systems.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65V to 3.6V
• 3-state outputs for bus isolation
• High drive capability: ±24mA at 3.3V
• Low power consumption: 10μA max ICC
• Supports partial power-down (Ioff)
• Latch-up performance exceeds 100mA per JESD 78
• Compatible with TTL levels

Target Applications

• 5G base station control logic
• Automotive dashboard display interface
• Industrial PLC I/O modules
• Data communication buffers (e.g., RS-232 transceivers)
• FPGA/CPLD configuration and signal conditioning
• Memory address drivers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC240DW. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
