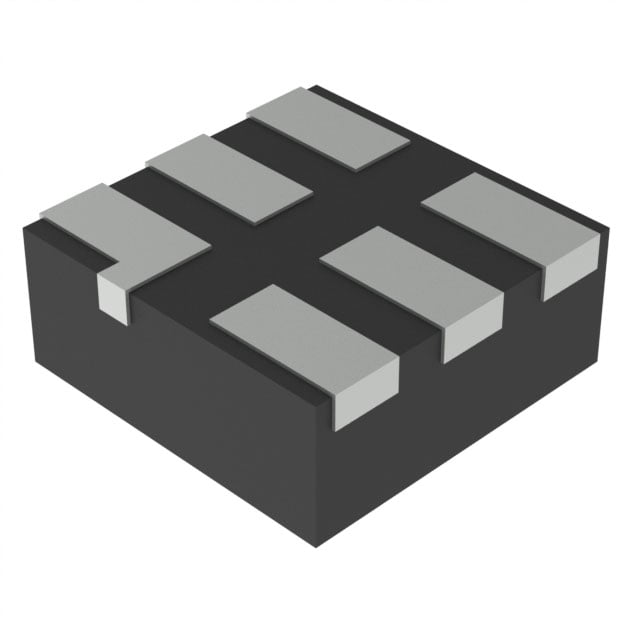

SN74LVC2G07DSF2 TI Buffer/Driver | 6-SON(1x1) | Dual, Open-Drain, 1.65-5.5V

Product Overview

The SN74LVC2G07DSF2 is a dual buffer/driver from Texas Instruments' LVC family, designed for 1.65-V to 5.5-V VCC operation. It features open-drain outputs, making it ideal for driving LEDs, level shifting, or wired-OR applications. Housed in a compact 6-SON (1x1 mm) package, it offers high drive capability (up to 32 mA) and low power consumption. The device is fully specified for partial-power-down applications using Ioff circuitry, which disables outputs when VCC is 0 V, preventing damaging backflow current.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 5.5 V
• Open-drain outputs for wired-OR and level translation
• High drive capability: ±32 mA at 3.3 V
• Low static power consumption (10 µA max)
• Ioff supports partial-power-down mode
• Ultra-small 6-SON (1x1 mm) package for space-constrained designs
• ESD protection exceeds JESD 22

Target Applications

• 5G base station: Level shifting for control signals between FPGAs and RF transceivers (e.g., TI's AFE7769)
• Automotive dashboard: Driving indicator LEDs with open-drain outputs
• Industrial sensors: Wired-OR interrupt lines for multiple sensor nodes
• Portable electronics: I2C bus level translation (e.g., connecting 1.8V sensor to 3.3V MCU)
• Server/Networking: Power sequencing and enable signals

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC2G07DSF2. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
