SN74LVC2G125YZPR TI Buffer/Driver | 8-DSBGA | 1.65-5.5V, 3-State

Product Overview

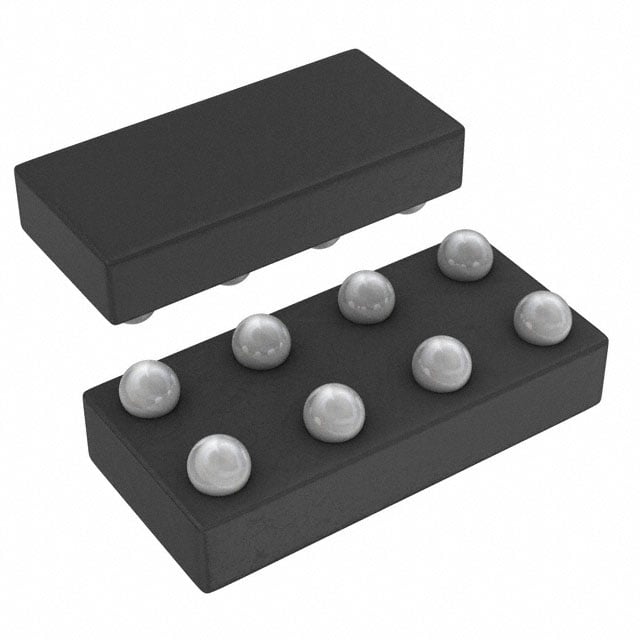

The SN74LVC2G125YZPR is a dual bus buffer gate with 3-state outputs from Texas Instruments, designed for 1.65-V to 5.5-V VCC operation. This device features two independent non-inverting buffers with separate output enable inputs. When OE is low, the output is enabled; when OE is high, the output is in high-impedance state. The inputs are tolerant to 5.5 V, allowing down-translation to VCC. It is available in a space-saving 8-DSBGA package (0.35mm pitch, 1.9mm x 0.9mm).

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 5.5 V
• 5.5-V tolerant inputs for mixed-voltage systems
• 3-state outputs with separate enable pins
• High drive capability: ±32 mA at 3.0 V
• Low propagation delay: 3.8 ns typical at 3.3 V
• Ultra-small package: 8-DSBGA (0.35mm pitch)
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

• 5G base station control logic: buffering enable signals for RF front-end modules
• Automotive dashboard display: level translation for SPI/I2C bus isolation
• Industrial sensor interfaces: signal buffering for PLC digital inputs
• Portable medical devices: battery-powered logic level shifting
• IoT edge gateways: 3-state bus isolation for multi-master communication
