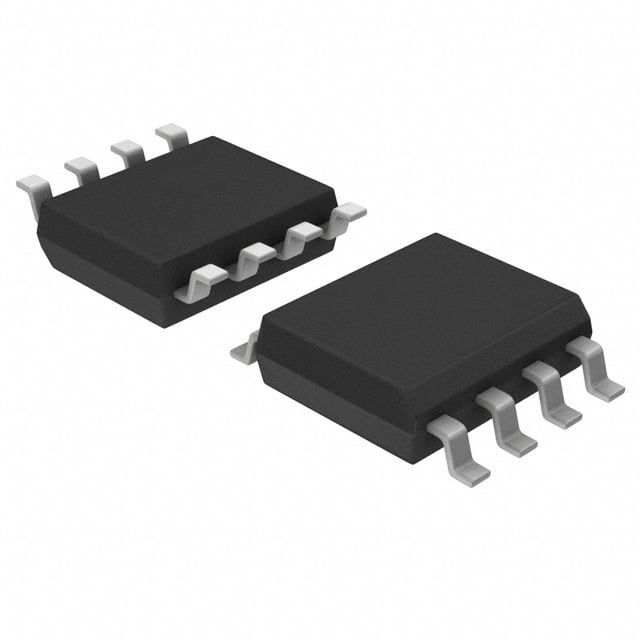

SN74LVC2G126DCTRE4 TI Buffer/Driver | SM8 | 1.65-5.5V, 3-State Outputs

Product Overview

The SN74LVC2G126DCTRE4 is a dual bus buffer gate with 3-state outputs from Texas Instruments. Designed for 1.65-V to 5.5-V VCC operation, it is ideal for mixed-voltage systems and low-power applications. The device features two independent buffer gates with separate output enable (OE) inputs. When OE is low, the output is in the high-impedance state. The inputs are tolerant to 5.5 V, allowing down-translation to VCC. This device is fully specified for partial-power-down applications using Ioff circuitry, which disables outputs when VCC is 0 V, preventing damaging backflow current.

Detailed Technical Specifications

Key Features

• Wide operating voltage range: 1.65 V to 5.5 V
• 5.5-V tolerant inputs
• 3-state outputs for bus-oriented applications
• Ioff supports partial-power-down mode
• Low power consumption: 10-μA max ICC
• High drive: ±32 mA at 3.3 V
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• ESD protection: 2000-V HBM, 1000-V CDM
• Available in SM8 (DCT) package

Target Applications

• 5G base station control logic
• Automotive dashboard display interface
• Industrial sensor signal buffering
• Portable electronics level translation
• Server and networking equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC2G126DCTRE4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74LVC2G126DCTRE4 是德州儀器推出的雙路總線緩衝閘極，帶三態輸出。工作電壓範圍為 1.65 V 至 5.5 V，適用於混合電壓系統和低功耗應用。該器件包含兩個獨立的緩衝閘極，每個閘極帶有獨立的輸出使能（OE）輸入。當 OE 為低電平時，輸出處於高阻抗狀態。輸入可耐受 5.5 V，支持向下轉換至 VCC。該器件通過 Ioff 電路完全支持部分斷電應用，當 VCC 為 0 V 時，輸出禁用，防止損壞性回流電流。

詳細技術參數

核心特性

• 寬工作電壓範圍：1.65 V 至 5.5 V
• 5.5 V 耐受輸入
• 三態輸出，適用於總線應用
• Ioff 支持部分斷電模式
• 低功耗：最大 ICC 10 μA
• 高驅動能力：±32 mA（3.3 V 時）
• 閂鎖性能超過 100 mA（符合 JESD 78 Class II）
• ESD 保護：2000 V HBM，1000 V CDM
• 提供 SM8（DCT）封裝

典型應用場景

• 5G 基站控制邏輯
• 汽車儀表盤顯示接口
• 工業傳感器信號緩衝
• 便攜式電子設備電平轉換
• 服務器和網絡設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74LVC2G126DCTRE4 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
