SN74LVC2G14YEAR TI Inverter Schmitt Trigger | 6-DSBGA | 1.65V-5.5V, Dual Channel

Product Overview

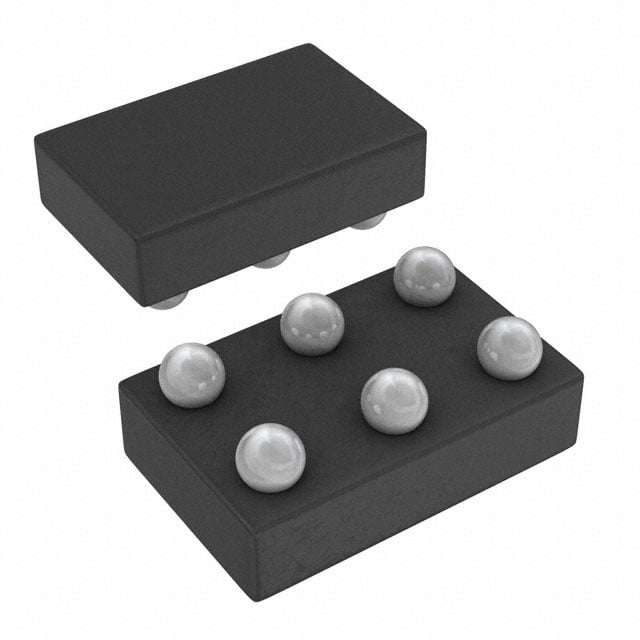

The SN74LVC2G14YEAR from Texas Instruments is a dual-channel inverter with Schmitt-trigger inputs, designed for 1.65-V to 5.5-V VCC operation. This device is part of the LVC family, offering low-voltage operation and high drive capability. The Schmitt-trigger inputs provide hysteresis for noise immunity and slow input signal conditioning. The device is available in a 6-pin DSBGA (YEA) package, which is ultra-small and suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65 V to 5.5 V
• Schmitt-trigger inputs for noise immunity
• High drive capability: ±32 mA at 3 V, ±50 mA at 5 V
• Low propagation delay: 3.8 ns typical at 3.3 V
• Ultra-small 6-DSBGA package (1.45 mm × 0.95 mm)
• Supports partial power-down (Ioff) mode
• ESD protection: 2 kV HBM, 1 kV CDM

Target Applications

• 5G base stations: Signal conditioning for control logic
• Automotive dashboard: Button debouncing and sensor signal processing
• Portable electronics: Level shifting and noise filtering
• Industrial automation: PLC input modules
• IoT devices: Low-power signal conditioning
