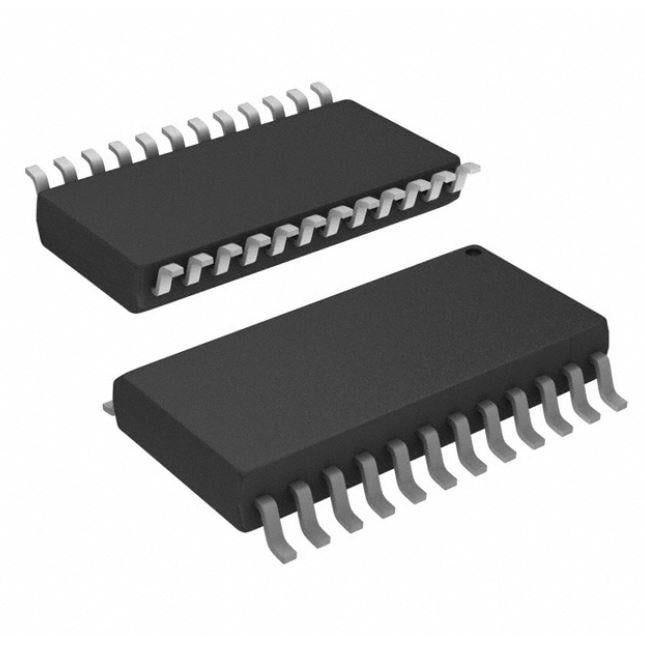

SN74LVC861ANSR TI Bus Transceiver | 24-SO | 3.3V, 10-Bit

Product Overview

The SN74LVC861ANSR from Texas Instruments is a 10-bit bus transceiver designed for asynchronous communication between data buses. Operating from 1.65V to 3.6V, it provides bidirectional data flow with direction control (DIR) and output enable (OE). The device is ideal for mixed-voltage systems, offering 5V-tolerant inputs and outputs. Housed in a 24-pin SOP package, it supports high-speed data transfer with low power consumption.

Detailed Technical Specifications

Key Features

• 10-bit bidirectional bus transceiver
• Wide supply voltage range: 1.65V to 3.6V
• 5V-tolerant inputs and outputs
• Direction control (DIR) and output enable (OE)
• Low power consumption: ICC = 10 µA max
• High drive: ±24 mA at 3.3V
• ESD protection exceeds JESD 22
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

• 5G base stations: data bus isolation between baseband and RF modules
• Automotive dashboard: communication between MCU and display controller
• Industrial automation: PLC I/O modules
• Networking equipment: routers and switches
• Consumer electronics: smart home hubs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVC861ANSR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
