Product Overview

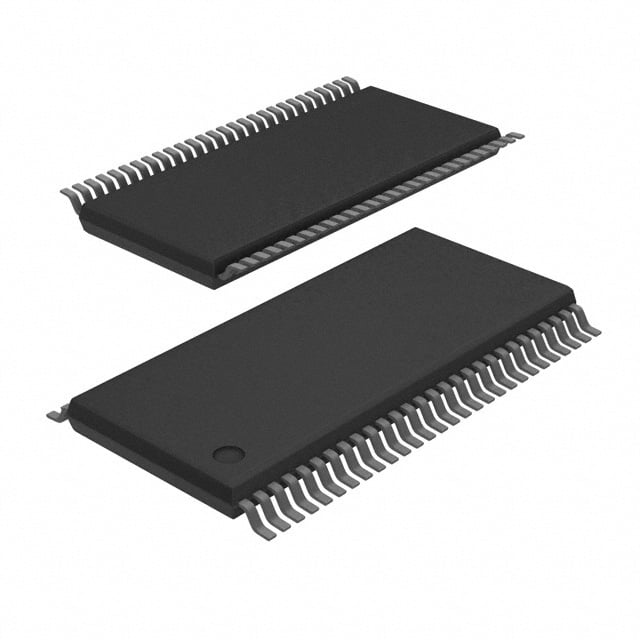

The SN74LVCH16952ADL is a 16-bit registered bus transceiver from Texas Instruments, designed for 3.3-V VCC operation with 5-V tolerant I/Os. It provides bidirectional communication between two data buses (A and B) with direction control (DIR) and output enable (OE) inputs. The device features dual 8-bit registers for each bus, allowing data flow in both directions. It is housed in a 56-pin SSOP package, ideal for space-constrained applications.

Detailed Technical Specifications

Parameter Value
Supply Voltage (VCC) 2.7 V to 3.6 V
Input Voltage Range 0 V to 5.5 V
Output Voltage Range 0 V to VCC
Operating Temperature -40°C to +85°C
Propagation Delay (typical) 4.5 ns at 3.3 V
Output Drive ±24 mA at 3.3 V
Package 56-SSOP (DL)
Logic Family LVC
Number of Bits 16
Direction Control DIR (active high/low)
Output Enable OE (active low)

Key Features

  • 16-bit bidirectional bus transceiver with dual registers
  • Operates from 2.7 V to 3.6 V
  • 5-V tolerant inputs
  • Supports mixed-mode signal operation (3.3 V to/from 5 V)
  • Typical propagation delay of 4.5 ns
  • High drive capability: ±24 mA at 3.3 V
  • Bus-hold circuitry eliminates need for external pull-up resistors
  • Power-off high-impedance outputs
  • Package: 56-SSOP (DL)

Target Applications

  • 5G base station control boards (e.g., interfacing FPGA with baseband processor)
  • Automotive dashboard display modules (e.g., connecting MCU to LCD driver)
  • Industrial PLC I/O modules (e.g., data bus isolation)
  • Networking equipment (e.g., router backplane communication)
  • Data storage systems (e.g., RAID controller bus)
