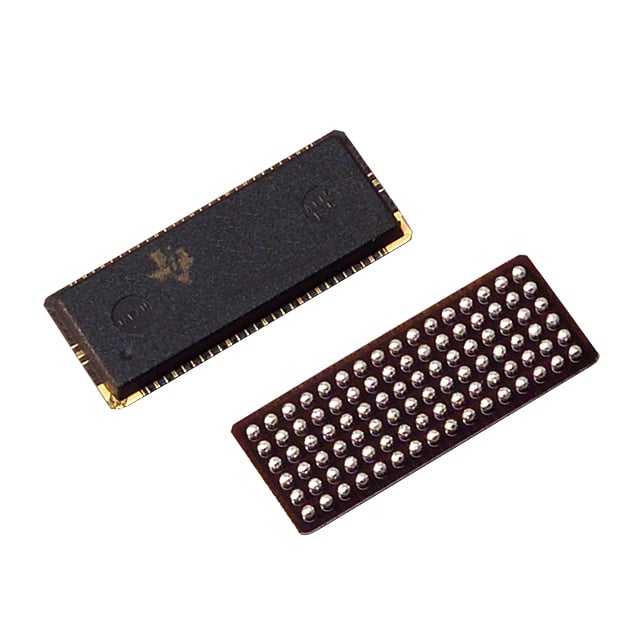

SN74LVCH32245AGKER TI Bus Transceiver | 96-LFBGA(13.5X5.5) | 32-bit, 2.3-3.6V

Product Overview

The SN74LVCH32245AGKER is a 32-bit (4-byte) non-inverting bus transceiver from Texas Instruments, designed for asynchronous communication between data buses. It features 3-state outputs and operates from 2.3V to 3.6V, making it ideal for low-voltage applications. The device is housed in a compact 96-LFBGA (13.5x5.5mm) package, offering high-density integration. With partial-power-down (Ioff) and bus-hold circuitry, it ensures reliable performance in mixed-voltage environments.

Detailed Technical Specifications

Key Features

• 32-bit bidirectional bus transceiver with 4 byte-wide channels
• Supports mixed-voltage operation: 2.3V to 3.6V VCC with 5V-tolerant I/Os
• Bus-hold circuitry eliminates need for external pull-up/pull-down resistors
• Partial-power-down (Ioff) mode prevents backflow current when VCC=0V
• Low power consumption: ICC typically 20 µA
• High drive capability: ±24 mA at 3.3V
• ESD protection exceeds JESD 22 standards

Target Applications

• 5G base station control boards (e.g., data bus isolation between FPGA and processor)
• Automotive dashboard display systems (e.g., connecting MCU to LCD driver)
• Industrial automation PLC modules (e.g., I/O bus expansion)
• Networking equipment (e.g., router backplane data transfer)
• Medical imaging devices (e.g., data acquisition boards)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVCH32245AGKER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
