SN74LVCR32245AZKER TI Bus Transceiver | 96-PBGAMICROSTAR (13.6X5.6) | 32-bit, 3.3V

Product Overview

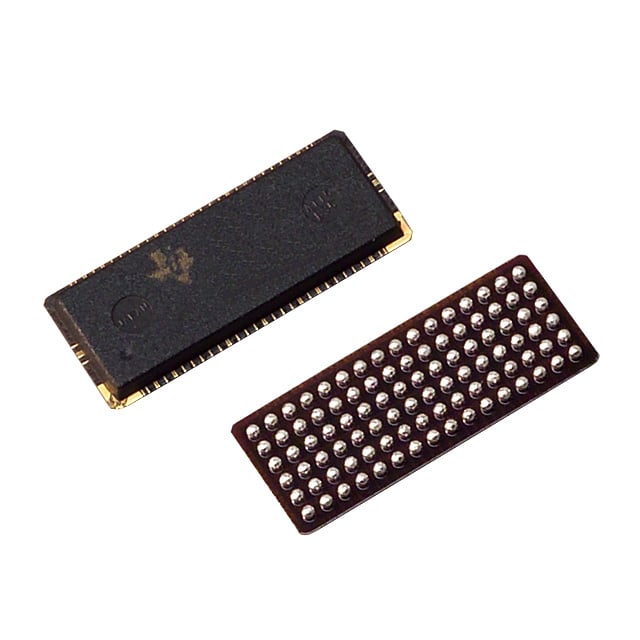

The SN74LVCR32245AZKER is a 32-bit (quad-octal) non-inverting bus transceiver from Texas Instruments, designed for 3.3V operation with 5V tolerant I/Os. It features 3-state outputs and is ideal for bidirectional voltage level translation and bus isolation in high-performance systems. Housed in a compact 96-ball PBGA MICROSTAR package (13.6mm x 5.6mm), it offers excellent signal integrity and space savings.

Detailed Technical Specifications

Key Features

• 32-bit bidirectional bus transceiver with 3-state outputs
• Supports mixed-mode voltage operation: 3.3V VCC with 5V tolerant inputs
• Low power consumption: ICC = 10 µA max
• High drive capability: ±24 mA output drive
• Bus hold on data inputs eliminates need for external pull-up resistors
• ESD protection exceeds JESD 22 (2000V HBM, 1000V CDM)
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

The SN74LVCR32245AZKER is suitable for a wide range of applications including:

• 5G base stations: for interfacing between baseband processors and RF front-end control logic
• Automotive dashboard systems: for connecting infotainment modules to display controllers
• Data communication equipment: routers, switches, and servers for bus isolation
• Industrial automation: PLCs and motor drives for signal level translation
• Consumer electronics: smart TVs and gaming consoles for memory bus interfacing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVCR32245AZKER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
