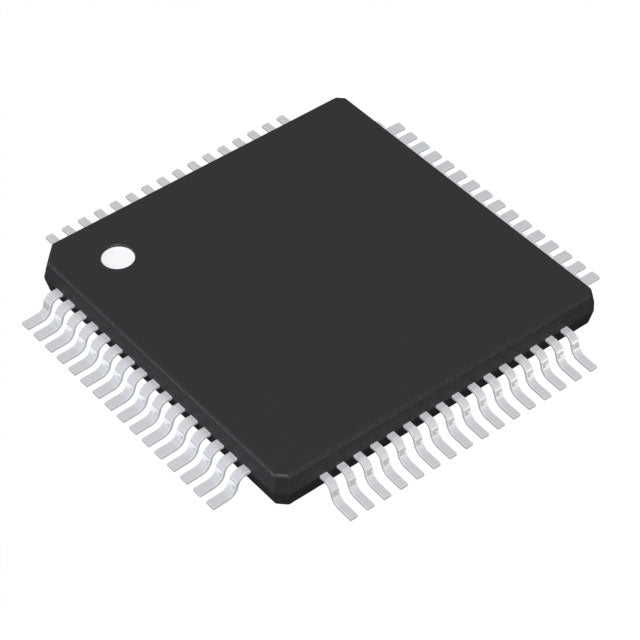

SN74LVTH18646APMG4 TI Bus Transceiver | 64-LQFP (10X10) | 3.3V, 18-Bit

Product Overview

The SN74LVTH18646APMG4 is a high-performance 18-bit bus transceiver from Texas Instruments, designed for 3.3-V systems. It features dual-supply voltage translation (3.3V to 5V tolerant inputs) and provides bidirectional asynchronous communication between two data buses. Housed in a compact 64-LQFP (10x10 mm) package, this device is ideal for high-density applications requiring low power consumption and high drive capability.

Detailed Technical Specifications

Key Features

• 18-bit bidirectional bus transceiver with 3-state outputs
• Supports mixed-mode voltage operation (3.3V VCC with 5V tolerant inputs)
• Low static power consumption (ICC = 5 µA max)
• Bus-hold circuitry eliminates need for external pull-up resistors
• ESD protection exceeds JESD 22 (2000-V HBM, 1000-V CDM)
• Latch-up performance exceeds 100 mA per JESD 78

Target Applications

• 5G base station control boards (e.g., interface between FPGA and backplane)
• Automotive dashboard display modules (e.g., connecting MCU to LCD driver)
• Industrial PLC I/O modules (e.g., data bus isolation)
• Networking equipment (e.g., router line card data paths)
• Medical imaging systems (e.g., data acquisition boards)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVTH18646APMG4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
