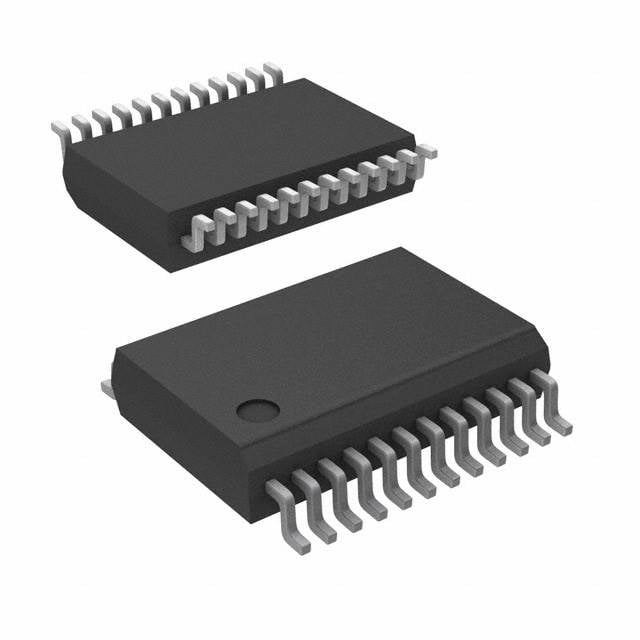

SN74LVTH652DBRE4 TI Bus Transceiver | 24-SSOP | 3.3V, Non-Inverting

Product Overview

The SN74LVTH652DBRE4 is a high-performance, 3.3V ABT octal bus transceiver and register from Texas Instruments. It combines D-type latches and D-type flip-flops to allow for transparent, latched, or clocked data flow. Designed for low-voltage operation, it provides mixed 3.3V/5V system compatibility and features bus-hold circuitry to eliminate the need for external pull-up resistors. Housed in a compact 24-SSOP package, it is ideal for high-density board designs.

Detailed Technical Specifications

Key Features

• 3.3V ABT architecture with 5V tolerant inputs
• Bus-hold circuitry eliminates external pull-up resistors
• Non-inverting data path with transparent, latched, or clocked modes
• High drive: -32 mA IOH, 64 mA IOL
• Power-up 3-state outputs to prevent bus contention
• ESD protection exceeds 2000V HBM
• Packaged in 24-SSOP for space-saving

Target Applications

• 5G base station control boards (e.g., digital signal routing between FPGA and backplane)
• Automotive dashboard display modules (e.g., data bus isolation between MCU and display driver)
• Industrial PLC I/O modules (e.g., buffering sensor data to controller)
• Telecommunications switching equipment (e.g., memory bus interface)
• Data storage systems (e.g., HDD/SSD controller interface)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LVTH652DBRE4. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
