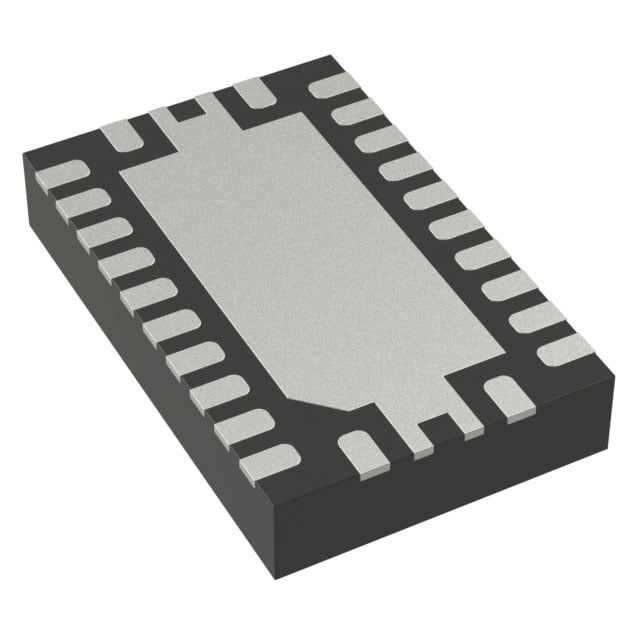

SN74LXC8T245RHLR TI 8-Bit Dual-Supply Bus Transceiver | 24-VQFN (5.5x3.5) | 1.1V-5.5V, 100Mbps

Product Overview

The SN74LXC8T245RHLR is a high-performance 8-bit dual-supply bus transceiver from Texas Instruments, designed for bidirectional voltage-level translation between two independent voltage nodes. It operates over a wide supply range of 1.1V to 5.5V on both VCCA and VCCB, making it ideal for multi-voltage systems. The device supports data rates up to 100 Mbps and features direction control pins (DIR) and output enable (OE) for flexible bus management. Housed in a compact 24-VQFN (5.5x3.5) package, it is suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• Bidirectional voltage-level translation between 1.1V and 5.5V
• High-speed data transfer up to 100 Mbps
• Low power consumption with ICC of 10 µA (max)
• Supports partial power-down mode (Ioff)
• Glitch-free power-up sequencing
• Robust ESD protection: ±8 kV HBM
• Small footprint 24-VQFN package

Target Applications

• 5G base station control boards (e.g., interfacing FPGA with 1.8V logic to 3.3V peripherals)
• Automotive dashboard displays (e.g., connecting 1.8V MCU to 3.3V display driver)
• Industrial PLC modules (e.g., translating 3.3V sensor signals to 5V logic)
• Consumer electronics (e.g., smartphone camera module interface)
• Networking equipment (e.g., router processor to PHY chip level shifting)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74LXC8T245RHLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
