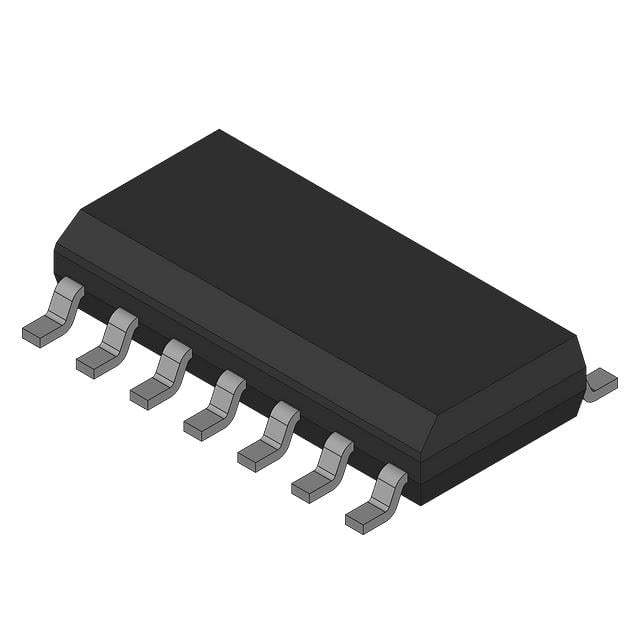

SN74S30DR TI Logic Gates | 8-Input NAND, 4.75V-5.25V, 50ns

Product Overview

The SN74S30DR from Texas Instruments is a high-speed 8-input positive-NAND gate designed for use in 5V logic systems. It features Schottky-clamped transistors for enhanced speed and is housed in a small-outline package (SOIC-14). This device is ideal for applications requiring multiple-input logic functions with minimal propagation delay.

Detailed Technical Specifications

Key Features

• 8-input positive-NAND logic function
• Schottky-clamped transistors for high speed
• Typical propagation delay: 50ns
• Wide operating voltage range: 4.75V to 5.25V
• Low power consumption
• Industry-standard SOIC-14 package

Target Applications

• 5G base station control logic
• Automotive dashboard display controllers
• Industrial automation PLCs
• Data communication routers
• Medical imaging equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74S30DR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
