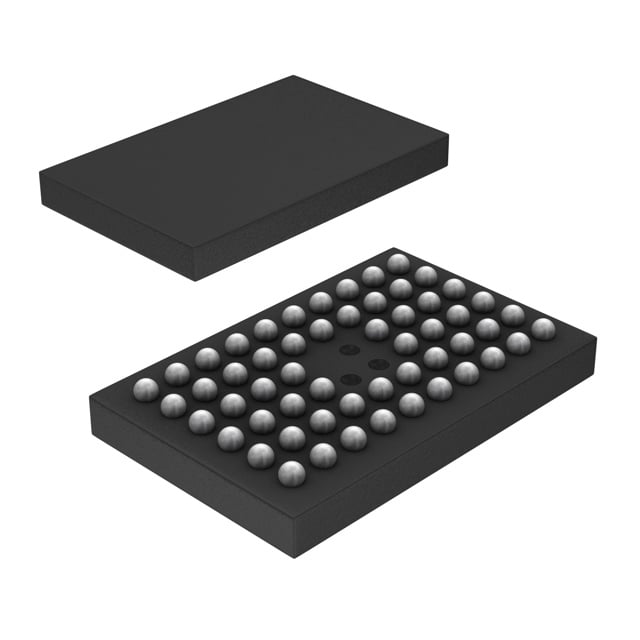

SN74VMEH22501GQLR TI Universal Bus Transceiver | 56-BGA MICROSTAR JUNIOR (7x4.5) | 3.3V, 100MHz

Product Overview

The SN74VMEH22501GQLR is a high-performance universal bus transceiver from Texas Instruments, designed for bidirectional voltage translation and signal buffering in mixed-voltage systems. Housed in a compact 56-ball BGA MICROSTAR JUNIOR package (7x4.5mm), it supports 3.3V operation with 5V-tolerant I/Os, making it ideal for interfacing between different logic levels. With a typical propagation delay of 3.5ns and output drive capability of ±24mA, this device ensures robust signal integrity in high-speed applications.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation between 3.3V and 5V systems
• High-speed operation with 3.5ns typical propagation delay
• 5V-tolerant inputs and outputs
• Low power consumption (ICC = 10μA max)
• Bus-hold circuitry eliminates need for external pull-up resistors
• Flow-through pinout for easy PCB layout
• Industrial temperature range (-40°C to +85°C)

Target Applications

• 5G base station control boards (e.g., interfacing FPGA with legacy 5V logic)
• Automotive dashboard display modules (e.g., connecting MCU to LCD driver)
• Industrial PLC I/O modules (e.g., bridging 3.3V controller to 5V sensors)
• Networking equipment (e.g., router backplane signal buffering)
• Medical imaging systems (e.g., data acquisition card level translation)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74VMEH22501GQLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74VMEH22501GQLR 是德州儀器（TI）推出的一款高性能通用匯流排收發器，專為混合電壓系統中的雙向電壓轉換和訊號緩衝而設計。採用緊湊的 56 球 BGA MICROSTAR JUNIOR 封裝（7x4.5mm），支援 3.3V 工作電壓且 I/O 可耐受 5V，非常適合不同邏輯電平之間的介面轉換。典型傳播延遲為 3.5ns，輸出驅動能力為 ±24mA，確保高速應用中的訊號完整性。

詳細技術參數

核心特性

• 雙向電壓轉換，支援 3.3V 與 5V 系統
• 高速操作，典型傳播延遲 3.5ns
• 輸入/輸出可耐受 5V
• 低功耗（ICC 最大 10μA）
• 匯流排保持電路，無需外部上拉電阻
• 直通式引腳排列，便於 PCB 佈局
• 工業級溫度範圍（-40°C 至 +85°C）

典型應用場景

• 5G 基地台控制板（例如 FPGA 與傳統 5V 邏輯介面）
• 汽車儀表板顯示模組（例如 MCU 連接 LCD 驅動器）
• 工業 PLC I/O 模組（例如 3.3V 控制器橋接 5V 感測器）
• 網路設備（例如路由器背板訊號緩衝）
• 醫療影像系統（例如資料擷取卡電平轉換）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74VMEH22501GQLR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
