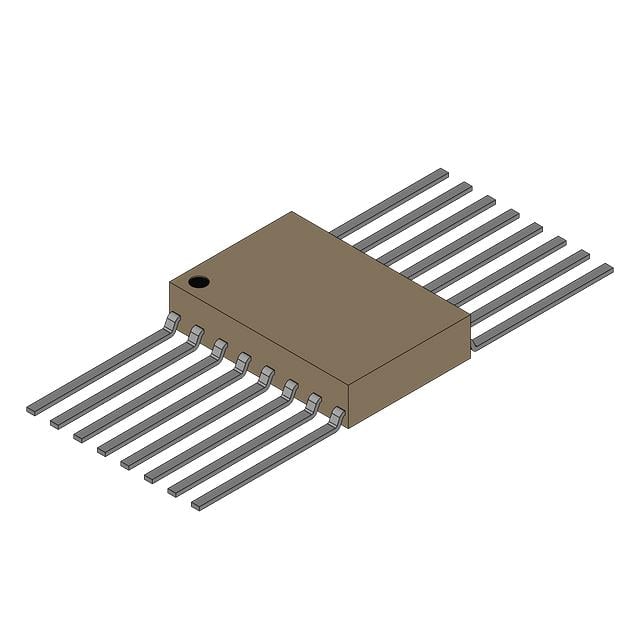

SNJ54F109W TI Flip Flop IC | D-Type, Dual, Positive Edge | 4.5V-5.5V, 100MHz

Product Overview

The SNJ54F109W is a high-speed dual D-type positive-edge-triggered flip-flop from Texas Instruments, manufactured in the advanced F (Fast) bipolar logic family. It features individual clear and preset inputs for each flip-flop, making it ideal for use in synchronous and asynchronous applications. The device operates over a wide supply voltage range of 4.5V to 5.5V and offers typical clock frequencies up to 100 MHz. Housed in a hermetic ceramic package, it is designed for military and aerospace applications requiring high reliability and performance in extreme environments.

Detailed Technical Specifications

Key Features

• Dual D-type flip-flops with individual clear and preset
• Positive-edge-triggered clocking
• High speed: typical clock frequency 100 MHz
• Low power consumption: 10 mW per flip-flop typical
• Wide operating temperature range: -55°C to +125°C
• Hermetic ceramic package for high reliability
• Compatible with TTL and CMOS logic levels

Target Applications

• Military avionics: flight control computers, radar signal processing
• Space systems: satellite telemetry, data storage
• Industrial control: programmable logic controllers (PLCs)
• High-reliability computing: servers, base stations (e.g., 5G base station control logic)
• Automotive: engine control units (ECUs), dashboard electronics
