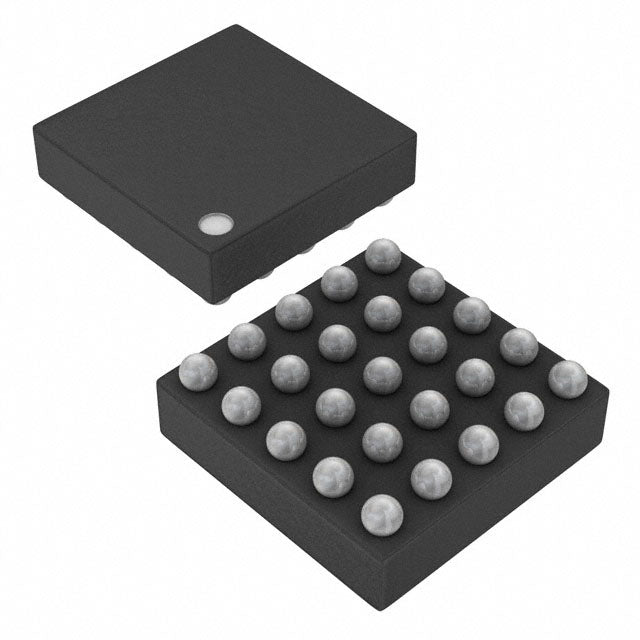

TCA6418EYFPR TI I2C I/O Expander | 25-DSBGA | 18-bit, 1.65-5.5V

Product Overview

The TCA6418EYFPR from Texas Instruments is a 18-bit I2C-bus I/O expander designed for 1.65-V to 5.5-V VCC operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface (serial clock (SCL) and serial data (SDA)). The device features an 18-bit configuration register for input, output, and polarity inversion selection. The system master can enable the I/Os as either inputs or outputs by writing to the configuration register. The data for each input or output is kept in the corresponding input or output register. The polarity of the input port register can be inverted with the polarity inversion register. The TCA6418EYFPR is available in a 25-ball DSBGA package (YFP), which is lead-free and RoHS compliant.

Detailed Technical Specifications

Key Features

• 18-bit I2C-bus I/O expander with three address pins (up to 8 devices on bus)
• Operating supply voltage range: 1.65 V to 5.5 V
• Low standby current consumption: 1.5 µA typical
• I2C interface supports Standard (100 kHz) and Fast (400 kHz) modes
• Active-low interrupt output (INT) to notify the host of input changes
• Polarity inversion register to invert input data
• Open-drain active-low reset input (RESET)
• No glitch on power-up; internal power-on reset
• 5-V tolerant I/Os in 1.8-V, 2.5-V, or 3.3-V systems
• Package: 25-ball DSBGA (YFP) with 0.5-mm pitch

Target Applications

• 5G base station: Control and status monitoring of power amplifiers, fans, and LEDs
• Automotive dashboard: Reading buttons, switches, and controlling indicator LEDs
• Industrial PLC: Expanding digital I/O for sensor inputs and actuator outputs
• Server/telecom equipment: Monitoring system health (temperature, voltage) via GPIO
• Consumer electronics: Keypad scanning and LED control in smart home devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TCA6418EYFPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
