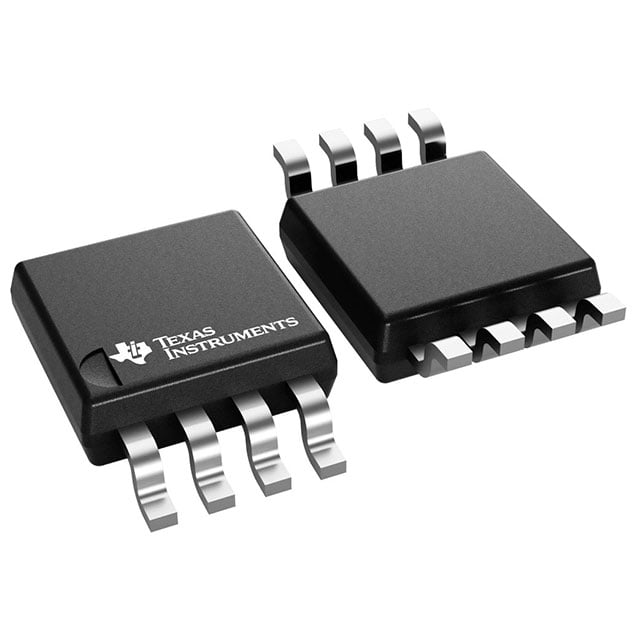

TCA9509DGKR TI I2C Bus Repeater | 8-VSSOP | 2.3V-3.6V, 400kHz

Product Overview

The TCA9509DGKR from Texas Instruments is a hot-swappable I2C bus repeater designed for bidirectional voltage-level translation (up to 3.6V) and bus buffering. It enables communication between two I2C buses operating at different voltage levels, with built-in rise time accelerators and stuck bus recovery. Housed in a compact 8-VSSOP package, it is ideal for space-constrained applications requiring robust I2C signal integrity.

Detailed Technical Specifications

Key Features

• Bidirectional voltage-level translation between 1.2V-3.6V and 1.65V-3.6V I2C buses
• Built-in rise time accelerators for improved signal integrity on heavily loaded buses
• Stuck bus recovery automatically releases bus if SCL or SDA is low for >30 ms
• Hot-swap capability allows insertion without disrupting bus operation
• Low standby current (1 µA typical)
• Small 8-VSSOP package saves board space

Target Applications

• 5G base stations: I2C bus isolation between control and RF modules
• Automotive dashboard: Level translation between 3.3V MCU and 1.8V sensors
• Industrial PLC: Buffering I2C signals over long backplane traces
• Data center servers: Hot-swap I2C bus for pluggable modules
• Consumer electronics: Smart speakers with mixed-voltage I2C peripherals

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TCA9509DGKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
