TCA9535MRGER TI I2C GPIO Expander | 24-VQFN (4x4) | 16-bit, 2.3-5.5V

Product Overview

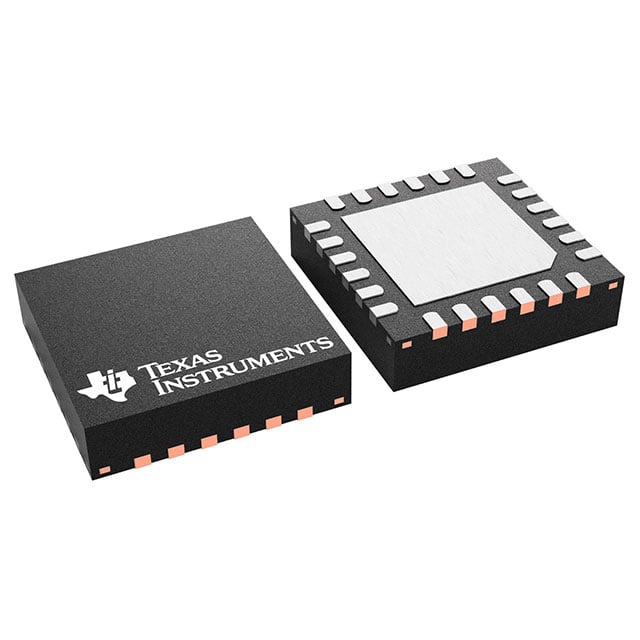

The TCA9535MRGER from Texas Instruments is a 16-bit I2C-bus and SMBus I/O expander designed for 2.3-V to 5.5-V VCC operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface (serial clock (SCL) and serial data (SDA)). The device features an interrupt output (INT) that can be connected to the microcontroller's interrupt input, alerting the host that an input state has changed. The TCA9535MRGER is available in a compact 24-pin VQFN (4x4 mm) package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• 16-bit bidirectional I/O expander
• I2C interface with up to 400 kHz clock frequency
• Three hardware address pins allow up to 8 devices on the same bus
• Open-drain active-low interrupt output
• Low standby current consumption (1 µA typical)
• Input/output configuration register
• Polarity inversion register
• Internal power-on reset
• No glitch on power-up
• SCL/SDA input filters provide noise immunity
• Supports hot insertion
• RoHS compliant and halogen-free

Target Applications

• 5G base stations: monitoring and control of power modules, fans, and status LEDs
• Automotive dashboard: reading switch inputs (buttons, knobs) and controlling indicator lights
• Industrial PLCs: expanding digital I/O for sensor and actuator interfaces
• Smart home hubs: managing GPIO for sensors, relays, and display backlight
• Medical devices: patient monitoring systems requiring additional I/O for alarms and controls
• Networking equipment: routers and switches for port status indication and reset control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TCA9535MRGER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
