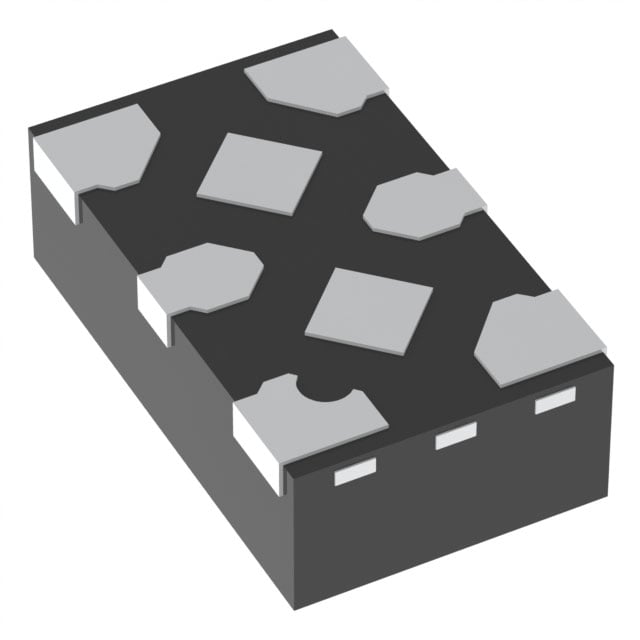

TCA9536DTMR TI I2C I/O Expander | 8-X2SON(1.35x0.8) | 1.65-5.5V, 4 GPIO

Product Overview

The TCA9536DTMR is a low-voltage, 4-bit I2C and SMBus I/O expander from Texas Instruments. It provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface. The device features a wide operating voltage range of 1.65V to 5.5V, making it suitable for both low-power and standard applications. Housed in a compact 8-X2SON (1.35x0.8) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• 4-bit I2C I/O expander with push-pull outputs
• Wide supply voltage range: 1.65V to 5.5V
• Ultra-small package: 8-X2SON (1.35x0.8 mm)
• Low standby current: 1 µA typical
• I2C interface with up to 400 kHz clock frequency
• Active-low reset input
• Open-drain interrupt output
• 5V tolerant I/O pins

Target Applications

• 5G base station: control and status monitoring of power modules
• Automotive dashboard: reading button inputs and controlling LEDs
• Portable electronics: GPIO expansion for sensors and switches
• Industrial automation: I/O expansion for PLCs and remote terminals
• Smart home devices: controlling relays and reading sensor states

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TCA9536DTMR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
