TCAL6416RTWR TI I2C I/O Expander | 24-WQFN (4x4) | 16-bit, 1.65-5.5V

Product Overview

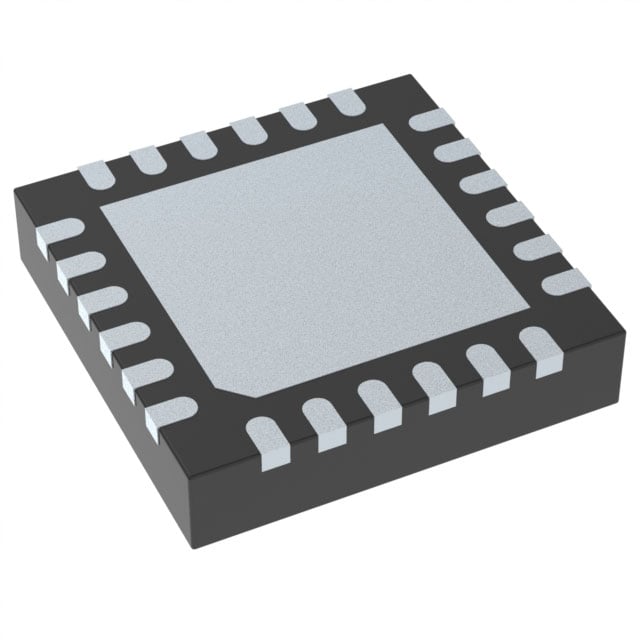

The TCAL6416RTWR from Texas Instruments is a 16-bit I2C-bus and SMBus I/O expander with interrupt output, reset, and configuration registers. It provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface (serial clock and serial data). The device features a wide operating voltage range of 1.65 V to 5.5 V, making it suitable for various low-voltage applications. The 24-pin WQFN package (4x4 mm) offers a compact solution for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16-bit bidirectional I/O ports
• I2C interface with up to 400 kHz clock frequency
• Wide supply voltage range: 1.65 V to 5.5 V
• Low standby current consumption
• Open-drain active-low interrupt output
• Reset input with power-on reset
• Three hardware address pins (up to 8 devices on bus)
• Polarity inversion register
• High drive capability: 10 mA per pin
• ESD protection exceeds JESD 22

Target Applications

• 5G base station control and monitoring (e.g., fan control, status LEDs)
• Automotive dashboard switches and indicators
• Industrial PLC I/O expansion
• Server and telecom equipment front panel control
• Portable electronics (e.g., smartphones, tablets) for GPIO expansion
• Medical devices (e.g., patient monitoring systems)
