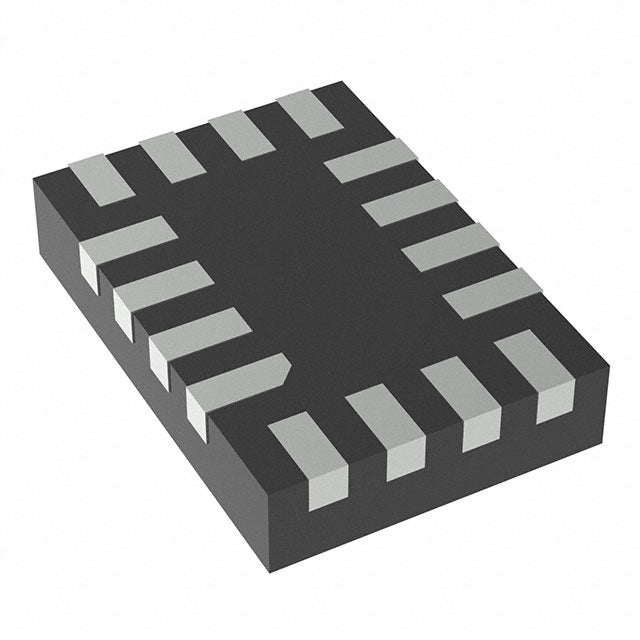

TCAL9538RSVR TI I2C I/O Expander | 16-UQFN (2.6x1.8) | 8-bit, 1.65-5.5V

Product Overview

The TCAL9538RSVR from Texas Instruments is a low-voltage 8-bit I2C and SMBus I/O expander with interrupt output and configuration registers. It provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface. The device features a wide operating voltage range of 1.65V to 5.5V, making it suitable for both legacy and modern low-power applications. Housed in a compact 16-UQFN (2.6x1.8mm) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• 8-bit bidirectional I/O ports
• I2C interface with up to 400 kHz clock frequency
• Low standby current consumption (1 µA typical)
• Open-drain interrupt output
• Power-on reset with all registers initialized to defaults
• 5V tolerant I/O pins
• No glitch on power-up
• Supports hot insertion

Target Applications

• 5G base station: Monitoring and control of power amplifiers, fan speed, and status LEDs
• Automotive dashboard: Reading button presses, controlling backlight LEDs, and sensor inputs
• Industrial PLC: Expanding digital I/O for sensor and actuator interfaces
• Portable electronics: GPIO expansion for keypads, sliders, and notification LEDs
• Server and networking equipment: System health monitoring and reset control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TCAL9538RSVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
