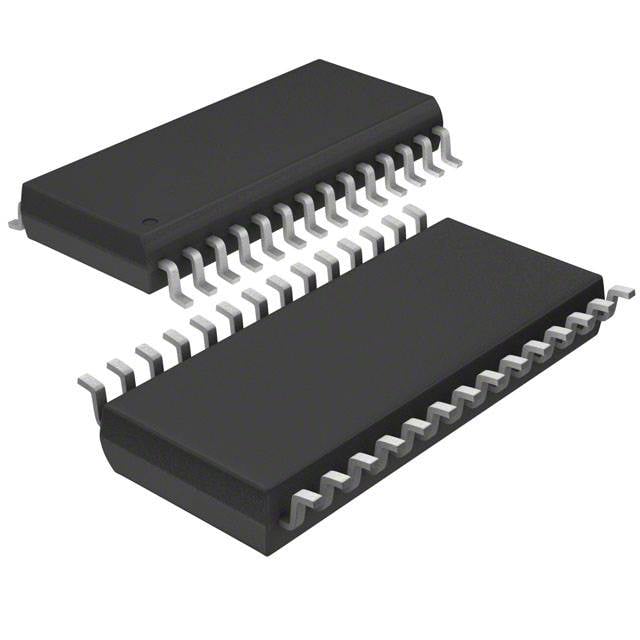

TDC1000PWR TI Ultrasonic Sensing IC | 28-TSSOP | 1-8 MHz, 12.5 ps Resolution

Product Overview

The TDC1000PWR is a high-performance ultrasonic sensing analog front-end (AFE) from Texas Instruments, designed for time-of-flight (ToF) measurement applications. It integrates a programmable transmit pulse generator, a low-noise amplifier (LNA), and a time-to-digital converter (TDC) with 12.5 ps resolution. The device operates with a supply voltage of 2.7 V to 5.5 V and supports transducer frequencies from 1 MHz to 8 MHz. Housed in a compact 28-TSSOP package, it is ideal for industrial, automotive, and medical sensing systems requiring precise distance, level, or flow measurement.

Detailed Technical Specifications

Key Features

• Integrated TDC with 12.5 ps resolution for high-precision ToF measurement
• Programmable transmit pulse generator with up to 15 Vpp output
• Low-noise amplifier with adjustable gain (20 dB to 40 dB)
• Built-in digital signal processing for echo detection
• SPI interface for configuration and data readout
• Wide supply voltage range (2.7 V to 5.5 V)
• Extended temperature range (-40°C to +125°C)

Target Applications

• Industrial level sensing in tanks and silos (e.g., Rosemount 5400 series)
• Automotive parking assist systems (e.g., Bosch ultrasonic sensors)
• Medical imaging probes (e.g., GE Logiq ultrasound systems)
• Flow meters for water and gas (e.g., Siemens Sitrans F)
• Proximity detection in robotics (e.g., KUKA LBR iiwa)
• 5G base station antenna alignment (e.g., Ericsson AIR 6488)
