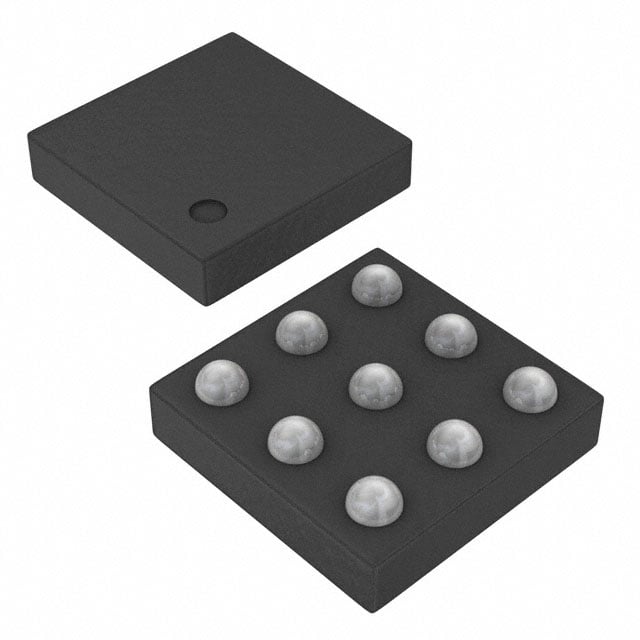

THS7319IZSVR TI Video Amplifier | 9-UCSP (1.5X1.5) | 3-Ch, 6th-Order SD, 33MHz

Product Overview

The THS7319IZSVR from Texas Instruments is a high-performance, 3-channel, 6th-order SDTV video amplifier designed for video signal conditioning. It integrates a 6th-order Butterworth filter with a 33MHz cutoff frequency, providing excellent out-of-band rejection and minimal group delay variation. The device operates from a single 2.7V to 5.5V supply and features rail-to-rail output, making it ideal for portable and low-power applications. Housed in a compact 9-UCSP (1.5x1.5mm) package, it saves board space while delivering superior video quality.

Detailed Technical Specifications

Key Features

• 3-channel, 6th-order SDTV video amplifier with 33MHz filter
• Single-supply operation: 2.7V to 5.5V
• Rail-to-rail output for maximum dynamic range
• Fixed gain of 6 dB (2V/V)
• Low power consumption: 55 mW typical
• AC or DC input coupling flexibility
• Ultra-small 9-UCSP package (1.5x1.5mm)
• Excellent video performance: 0.1% differential gain, 0.1° differential phase

Target Applications

• Set-top boxes and digital video recorders (e.g., TiVo Bolt)
• Video surveillance systems (e.g., Hikvision DS-2CD2T47G2-L)
• Portable media players and tablets (e.g., iPad)
• Automotive infotainment displays (e.g., Tesla Model S dashboard)
• Video conferencing equipment (e.g., Logitech Rally)
• 5G base station monitoring displays

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for THS7319IZSVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

THS7319IZSVR 是德州儀器（TI）推出的一款高性能、3通道、6階SDTV視頻放大器，專為視頻信號調理設計。它集成了截止頻率為33MHz的6階巴特沃斯濾波器，具有出色的帶外抑制和極小的群延遲變化。該器件可在2.7V至5.5V的單電源下工作，並具有軌到軌輸出，非常適合便攜式和低功耗應用。採用緊湊的9-UCSP（1.5x1.5mm）封裝，節省電路板空間，同時提供卓越的視頻質量。

詳細技術參數

核心特性

• 3通道、6階SDTV視頻放大器，帶33MHz濾波器
• 單電源供電：2.7V 至 5.5V
• 軌到軌輸出，實現最大動態範圍
• 固定增益6 dB（2V/V）
• 低功耗：典型55 mW
• AC或DC輸入耦合靈活性
• 超小9-UCSP封裝（1.5x1.5mm）
• 卓越的視頻性能：0.1%差分增益，0.1°差分相位

典型應用場景

• 機頂盒和數字視頻錄像機（例如TiVo Bolt）
• 視頻監控系統（例如海康威視DS-2CD2T47G2-L）
• 便攜式媒體播放器和平板電腦（例如iPad）
• 汽車信息娛樂顯示屏（例如特斯拉Model S儀表板）
• 視頻會議設備（例如羅技Rally）
• 5G基站監控顯示器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 THS7319IZSVR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
