TIBPAL16R4-15CFN TI Programmable Logic | 20-PLCC (9X9) | 15ns, 4 Registers

Product Overview

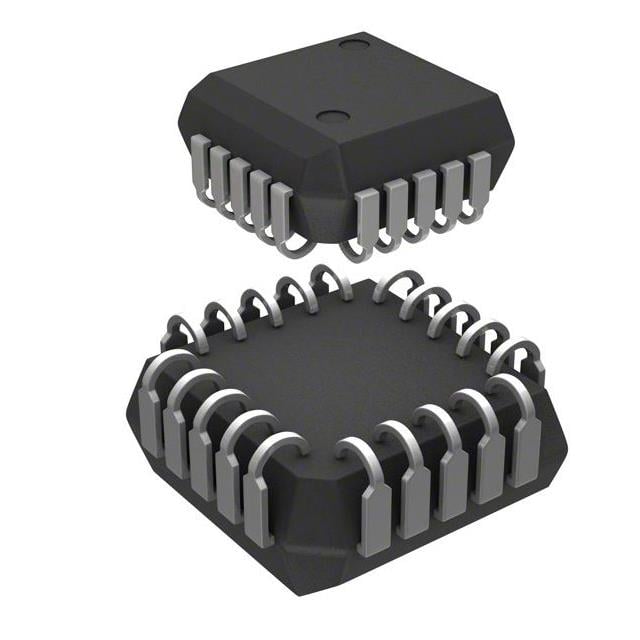

The TIBPAL16R4-15CFN is a high-performance Programmable Array Logic (PAL) device from Texas Instruments. It features 16 inputs, 4 registered outputs, and 4 combinatorial outputs, with a maximum propagation delay of 15 ns. Housed in a 20-pin PLCC (9x9 mm) package, it is ideal for high-speed logic replacement and glue logic applications.

Detailed Technical Specifications

Key Features

• High-speed bipolar PAL with 15 ns propagation delay
• 4 registered outputs with programmable polarity
• 4 combinatorial outputs
• Registered outputs have D-type flip-flops with common clock and output enable
• Programmable AND array, fixed OR array
• Power-up reset for registered outputs
• Available in 20-pin PLCC package for space-constrained applications

Target Applications

• Glue logic in 5G base station control boards
• Address decoding in automotive dashboard systems
• State machine implementation in industrial PLCs
• Bus interface logic in networking equipment
• Custom logic replacement in medical devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TIBPAL16R4-15CFN. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
