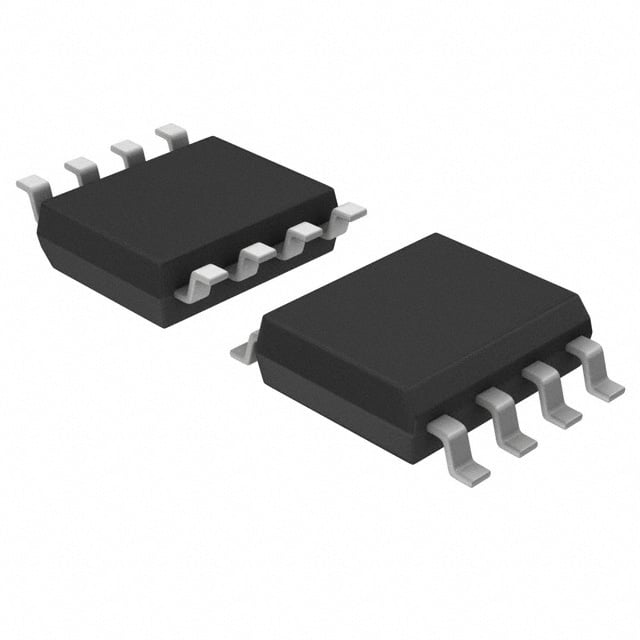

TL7705ACPSR TI Supervisory Circuits | 8-SO | 4.5V to 18V Supply, Active-Low Reset

Product Overview

The TL7705ACPSR from Texas Instruments is a supply voltage supervisor circuit designed to monitor power supply voltages in digital systems. It provides a reset signal to the microprocessor or microcontroller during power-up, power-down, and brown-out conditions. The device operates over a wide supply voltage range of 4.5V to 18V and features an active-low reset output. Housed in an 8-pin SOIC package, it is suitable for space-constrained applications.

Detailed Technical Specifications

Key Features

• Precision supply voltage monitoring with fixed threshold
• Active-low reset output with open-drain configuration
• Built-in hysteresis for noise immunity
• Wide supply voltage range: 4.5V to 18V
• Low quiescent current: 1.5mA typical
• Reset timeout delay: 200ms typical
• Available in small 8-pin SOIC package

Target Applications

• 5G base station power supply monitoring
• Automotive dashboard systems (e.g., infotainment clusters)
• Industrial PLC controllers
• Medical equipment (e.g., patient monitors)
• Portable battery-powered devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TL7705ACPSR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
