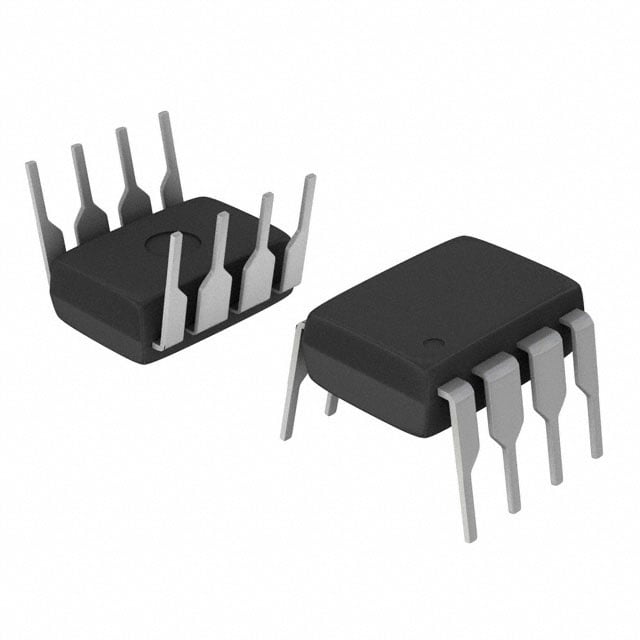

TL7705AIP TI Supervisory Circuits | 8-PDIP | 5V Supply, Active-Low Reset

Product Overview

The TL7705AIP from Texas Instruments is a monolithic integrated circuit designed for supply voltage supervision in microprocessor systems. It provides a reset signal to the microprocessor during power-up, power-down, and brownout conditions. The device features a precision voltage reference and comparator to monitor the 5V supply rail, ensuring reliable system operation. Housed in an 8-pin PDIP package, it is ideal for through-hole PCB designs requiring robust voltage monitoring.

Detailed Technical Specifications

Key Features

• Precision 5V supply monitoring with 2% threshold accuracy
• Active-low reset output with internal pull-up resistor option
• Built-in hysteresis for noise immunity
• Low power consumption: 1.5mA typical
• Wide supply voltage range: 3.5V to 18V
• Reset output valid down to VCC = 1V
• 8-pin PDIP package for easy prototyping

Target Applications

• 5G base station power management modules
• Automotive dashboard controllers
• Industrial PLC systems
• Medical monitoring equipment
• Consumer electronics like smart home hubs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TL7705AIP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
