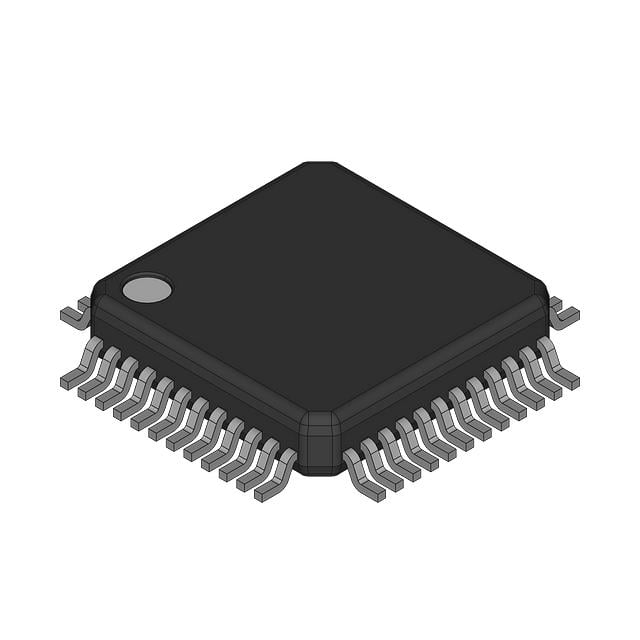

TLC320AD56CPT TI Audio Codec | 16-bit, 22.8kSPS, 5V

Product Overview

The TLC320AD56CPT is a high-performance, single-chip analog interface and codec from Texas Instruments. It integrates a 16-bit analog-to-digital converter (ADC) and a 16-bit digital-to-analog converter (DAC) with a sampling rate of up to 22.8 kSPS. Operating from a single 5V supply, it provides a complete analog front-end solution for voice and audio applications. The device features a serial interface for communication with DSPs or microcontrollers, making it ideal for telecommunications, voice processing, and industrial audio systems.

Detailed Technical Specifications

Key Features

• 16-bit linear codec with 22.8 kSPS max sampling rate
• Single 5V supply operation
• Low power consumption: 150 mW typical
• Serial interface with DSP/microcontroller compatibility
• On-chip anti-aliasing filter and reconstruction filter
• Power-down mode for power saving
• Pin-compatible with TLC320AD56C

Target Applications

• Voice over IP (VoIP) gateways
• Digital cordless phones
• PBX systems
• Audio processing for 5G base stations (voice channel)
• Automotive dashboard voice control systems
• Industrial voice recording and playback

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC320AD56CPT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLC320AD56CPT 是德州儀器（TI）推出的一款高性能單芯片模擬接口與編解碼器。它集成了16位模數轉換器（ADC）和16位數模轉換器（DAC），最高採樣率達22.8 kSPS。器件採用單一5V電源供電，為語音和音頻應用提供完整的模擬前端解決方案。其串行接口可與DSP或微控制器通信，非常適合電信、語音處理和工業音頻系統。

詳細技術參數

核心特性

• 16位線性編解碼器，最高採樣率22.8 kSPS
• 單一5V電源供電
• 低功耗：典型值150 mW
• 串行接口，兼容DSP/微控制器
• 片內抗混疊濾波器和重建濾波器
• 掉電模式以節省功耗
• 與TLC320AD56C引腳兼容

典型應用場景

• VoIP網關
• 數字無繩電話
• PBX系統
• 5G基站語音通道音頻處理
• 汽車儀表盤語音控制系統
• 工業語音錄放

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLC320AD56CPT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
