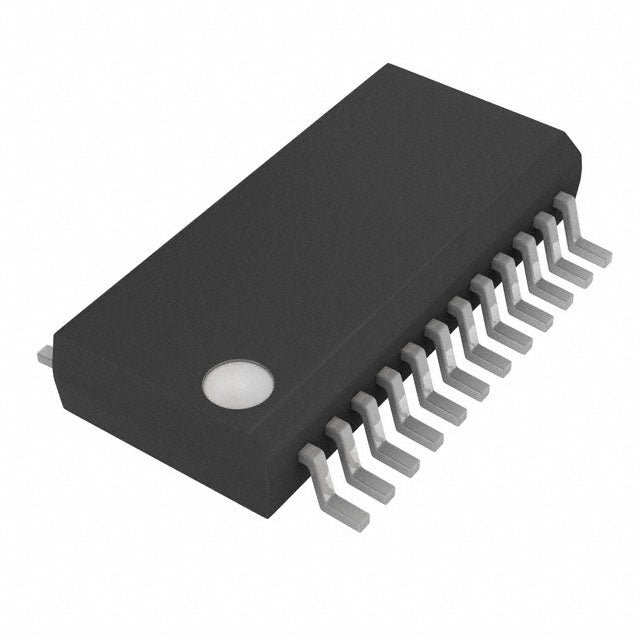

TLC59281DBQR TI LED Driver | 24-SSOP | 16-Channel, Constant Current

Product Overview

The TLC59281DBQR is a 16-channel constant-current sink LED driver from Texas Instruments, designed for high-performance display and lighting applications. It integrates a shift register, data latch, and constant-current output stages, enabling precise control of LED brightness. The device operates from a 3V to 5.5V supply and provides adjustable output current up to 120 mA per channel. Housed in a compact 24-SSOP package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs
• Adjustable output current via external resistor
• 3-wire serial interface (SDI, CLK, LE)
• Output current accuracy: ±1% (typical)
• Thermal shutdown protection
• Open/Short LED detection
• Low power consumption

Target Applications

• LED display panels (e.g., indoor/outdoor signage)
• Automotive lighting (e.g., dashboard indicators, tail lights)
• Industrial control panels (e.g., PLC indicators)
• 5G base station status indicators
• Consumer electronics (e.g., smart home displays)
