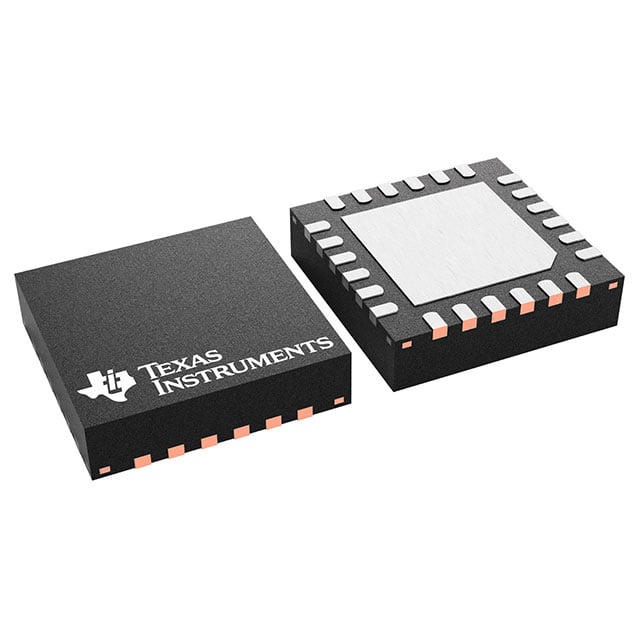

TLC59291RGET TI LED Driver | 24-VQFN (4x4) | 16-Ch, 50mA, PWM Dimming

Product Overview

The TLC59291RGET is a 16-channel constant-current LED driver from Texas Instruments, designed for high-performance display and lighting applications. It integrates a shift register, data latch, and constant-current sink drivers, providing precise current control up to 50 mA per channel. The device operates from a 3.0V to 5.5V supply and features a 30 MHz serial data interface for fast data transfer. Its 24-VQFN (4x4 mm) package enables compact designs, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs with 50 mA capability
• Adjustable output current via external resistor
• 30 MHz serial data interface for high-speed communication
• PWM dimming support for brightness control
• Thermal shutdown and open/short LED detection
• Low power consumption with sleep mode
• Compact 24-VQFN package for space-saving designs

Target Applications

• 5G base station status indicators
• Automotive dashboard and infotainment displays
• Industrial control panel LEDs
• LED signage and video walls
• General-purpose constant-current LED driving
