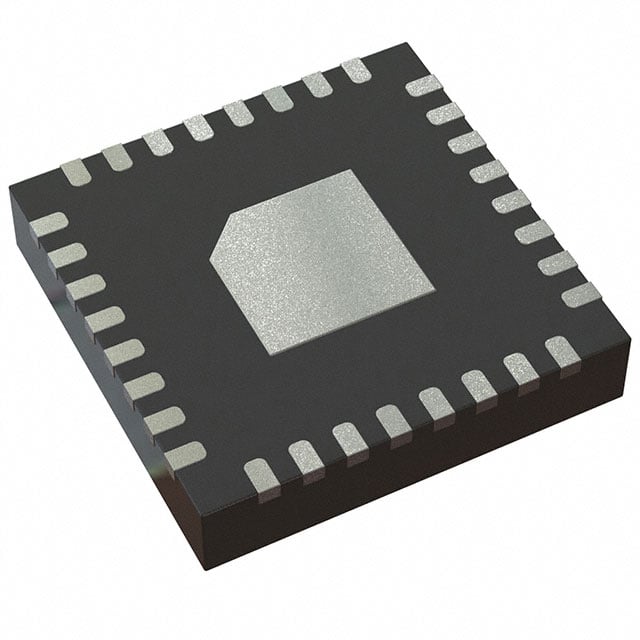

TLC59401RHBT TI LED Driver | 32-VQFN (5x5) | 16-Ch, Dot Correction, Grayscale

Product Overview

The TLC59401RHBT is a 16-channel constant-current sink LED driver from Texas Instruments, designed for high-performance display and lighting applications. It integrates dot correction and grayscale control, enabling precise brightness management for each LED. Housed in a compact 32-VQFN (5x5 mm) package, it offers excellent thermal performance and space efficiency for modern electronic designs.

Detailed Technical Specifications

Key Features

• 16 constant-current sink channels with programmable current from 0.5 mA to 60 mA
• Individual dot correction for each channel with ±1% accuracy
• 12-bit grayscale PWM control for smooth brightness transitions
• 30 MHz serial data interface for high-speed communication
• Built-in thermal shutdown and error detection
• Low power consumption with sleep mode

Target Applications

• LED video displays for indoor and outdoor signage
• Automotive lighting (e.g., dashboard backlighting, ambient lighting)
• Industrial control panels and indicator lights
• 5G base station status indicators
• Consumer electronics (e.g., smart home devices, gaming peripherals)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC59401RHBT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
