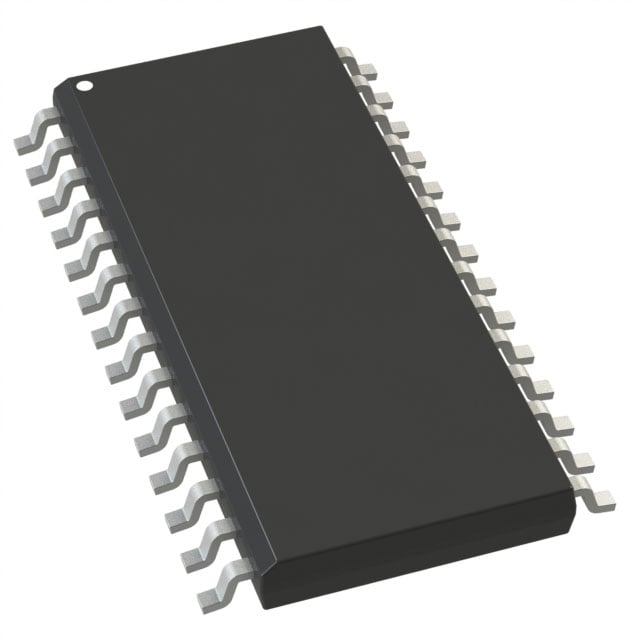

TLC5945PWPR TI LED Driver | 28-HTSSOP | 16-Channel, Constant Current

Product Overview

The TLC5945PWPR is a 16-channel, constant-current sink LED driver from Texas Instruments (TI), designed for high-performance display and lighting applications. It integrates a 16-bit shift register, data latches, and constant-current output stages, enabling precise control of LED brightness and color mixing. The device operates from a 3.0V to 5.5V supply and provides adjustable output current up to 120 mA per channel via an external resistor. Its 28-pin HTSSOP package offers a compact footprint for space-constrained designs.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs with 120 mA capability
• Adjustable output current via single external resistor
• 3.0 V to 5.5 V supply voltage range
• 30 MHz data transfer rate for high-speed serial interface
• Thermal shutdown protection
• Open/short LED detection
• PowerPAD package for enhanced thermal dissipation
• CMOS logic compatible

Target Applications

The TLC5945PWPR is ideal for a wide range of LED driving applications, including:

• 5G base station status indicators and panel lighting
• Automotive dashboard backlighting and interior lighting
• Industrial control panel displays
• LED video displays and signage
• Portable electronics (e.g., smartphone notification LEDs)
• General-purpose constant-current LED driving
