TLC5948APWP TI LED Driver | 24-HTSSOP | 16-Ch, 50mA, PWM Dimming

Product Overview

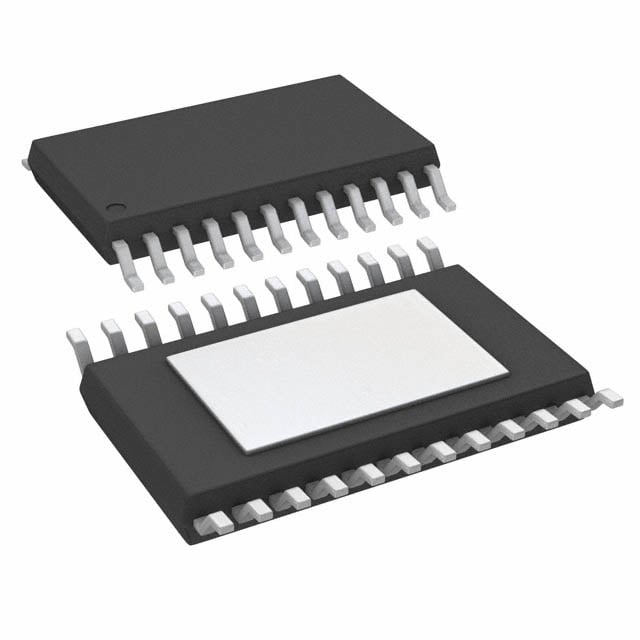

The TLC5948APWP is a 16-channel constant-current sink LED driver from Texas Instruments, designed for high-performance display and lighting applications. It features a 50mA per channel output current capability, 12-bit PWM grayscale control, and a 24-pin HTSSOP package with PowerPAD for enhanced thermal dissipation. The device supports a serial interface for data communication and offers programmable dot correction and global brightness control.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs with 50 mA capability
• 12-bit PWM grayscale control for smooth brightness
• 6-bit dot correction for uniformity
• 7-bit global brightness control
• Serial interface with daisy-chain capability
• Built-in thermal shutdown and open-LED detection
• PowerPAD package for improved thermal performance

Target Applications

• LED video displays (e.g., indoor/outdoor signage)
• Automotive lighting (e.g., dashboard backlighting, ambient lighting)
• Industrial control panels
• 5G base station status indicators
• General-purpose LED matrix driving
