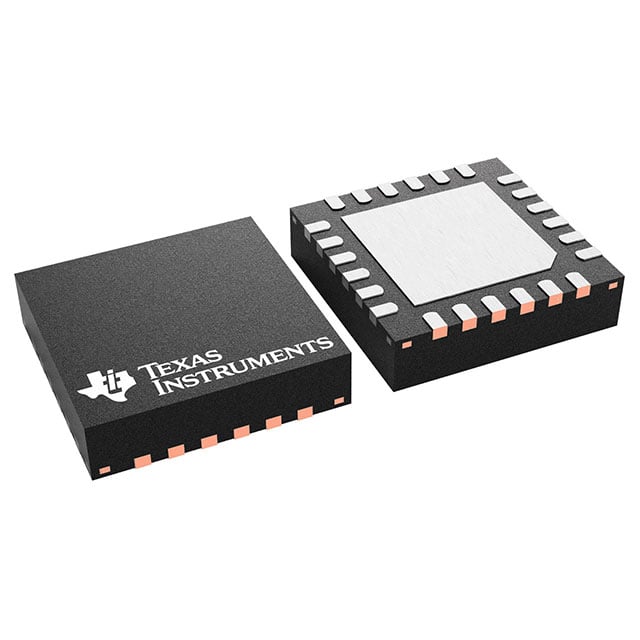

TLC5971RGET TI LED Driver | 24-VQFN (4x4) | 16-Ch, 50mA, PWM Dimming

Product Overview

The TLC5971RGET is a 16-channel constant-current sink LED driver from Texas Instruments, designed for high-precision LED control. It features a 16-bit PWM grayscale control for each channel, enabling smooth and accurate brightness adjustment. The device operates from a supply voltage of 3.0V to 5.5V and can sink up to 50mA per channel. It is housed in a compact 24-VQFN (4x4mm) package, making it ideal for space-constrained applications. The TLC5971RGET supports a serial interface for data communication, allowing daisy-chaining of multiple devices.

Detailed Technical Specifications

Key Features

• 16 constant-current sink channels with 16-bit PWM grayscale control
• Maximum output current of 50 mA per channel
• Wide supply voltage range: 3.0V to 5.5V
• Serial interface with daisy-chain capability
• Built-in thermal shutdown and LED open detection
• Compact 24-VQFN (4x4mm) package for space-saving designs
• Low power consumption with standby mode

Target Applications

• LED video displays and signage
• Architectural lighting
• Automotive interior lighting (e.g., dashboard backlighting)
• 5G base station status indicators
• Industrial control panels
• Consumer electronics (e.g., TV backlighting, gaming peripherals)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC5971RGET. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
