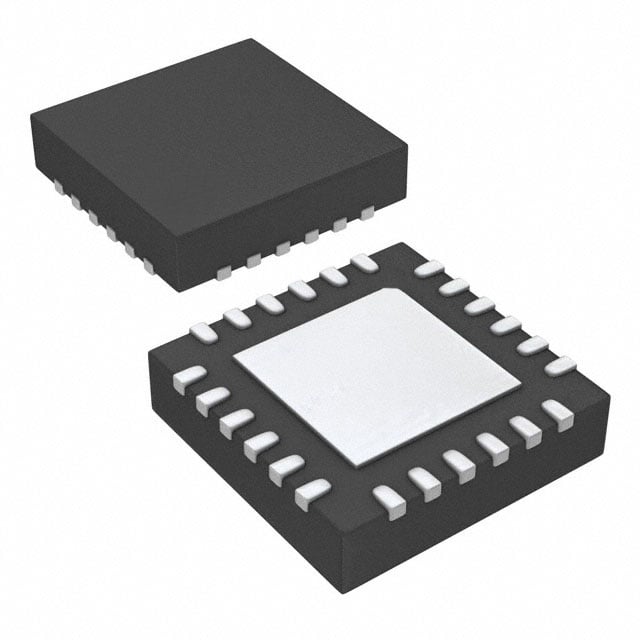

TLC69651RTWR TI LED Driver | 24-WQFN (4x4) | 48-Ch, 5.5V, PWM Dimming

Product Overview

The TLC69651RTWR is a 48-channel constant-current LED driver from Texas Instruments, designed for high-resolution local dimming in display backlighting and direct LED lighting applications. It integrates a 5.5V supply, 16-bit PWM dimming, and a 3-wire serial interface, enabling precise brightness control with minimal external components. The compact 24-WQFN (4x4 mm) package makes it ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• 48 constant-current sink outputs with 16-bit PWM dimming
• Individual channel brightness control via serial interface
• Low dropout voltage (0.5V typical at 20 mA)
• Built-in thermal shutdown and open/short LED detection
• 3-wire interface with daisy-chain capability for multiple devices
• Compact 24-WQFN package for space-saving designs

Target Applications

• LCD TV and monitor backlighting (e.g., 55-inch 4K TV with local dimming)
• Automotive dashboard displays (e.g., 12.3-inch cluster)
• 5G base station status indicators
• Industrial control panel backlighting
• LED signage and decorative lighting
