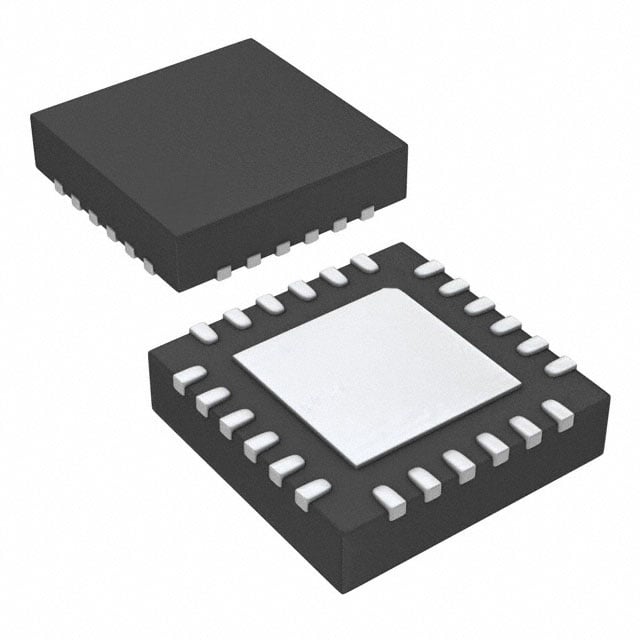

TLC69660RTWR TI LED Driver | 24-WQFN (4x4) | 60-Ch, 5.5V, PWM Dimming

Product Overview

The TLC69660RTWR is a 60-channel constant-current LED driver from Texas Instruments, designed for high-resolution display backlighting and signage applications. It integrates a 60-channel sink driver with 8-bit global brightness control and 8-bit individual PWM dimming, enabling precise luminance adjustment. The device operates from a 3V to 5.5V supply and delivers up to 30mA per channel. Its compact 24-WQFN (4x4mm) package makes it ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• 60 constant-current sink outputs with 3-30 mA range
• 8-bit global brightness and 8-bit individual PWM dimming
• Low dropout voltage (0.5V typical at 20 mA)
• Serial interface with daisy-chain capability
• Built-in LED open detection
• Thermal shutdown protection
• 24-WQFN (4x4 mm) package for compact design

Target Applications

• 5G base station status indicator panels
• Automotive dashboard backlighting
• Industrial control panel LED arrays
• Large-format LED signage (e.g., outdoor billboards)
• Medical device display backlighting
