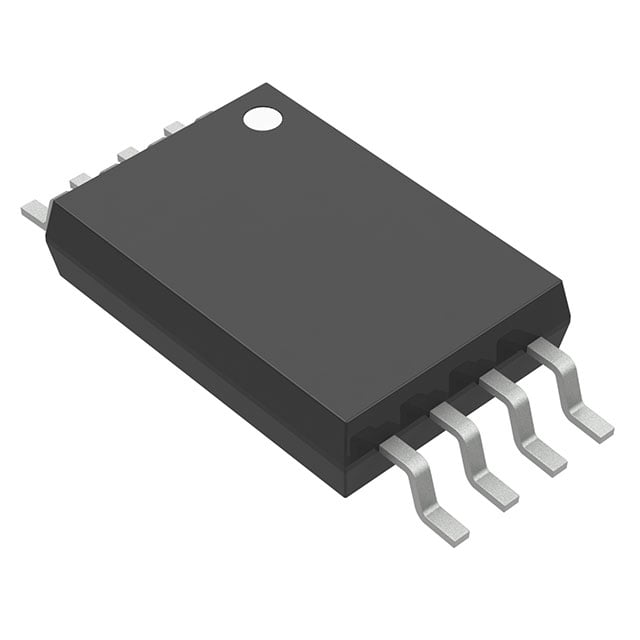

TLC7701QPW TI Supervisory Circuit | 8-TSSOP | 1.1V-5.5V, Push-Pull Output

Product Overview

The TLC7701QPW from Texas Instruments is a precision supervisory circuit designed for monitoring power supply voltages in digital systems. It provides a reset output during power-up, power-down, and brownout conditions. The device operates over a wide supply voltage range from 1.1V to 5.5V and features a push-pull output stage, eliminating the need for an external pull-up resistor. Housed in a compact 8-TSSOP package, it is ideal for space-constrained applications requiring reliable voltage supervision.

Detailed Technical Specifications

Key Features

• Precision voltage monitoring with fixed threshold of 0.9V
• Push-pull reset output eliminates external pull-up resistor
• Low quiescent current of 9µA for power-sensitive designs
• Wide supply voltage range from 1.1V to 5.5V
• 200ms reset timeout ensures system stability
• Operating temperature range -40°C to +125°C for industrial applications
• Compact 8-TSSOP package saves board space

Target Applications

• 5G base station power management modules
• Automotive dashboard and infotainment systems
• Industrial PLC and motor control units
• Portable medical devices like glucose monitors
• IoT edge nodes and smart sensors
